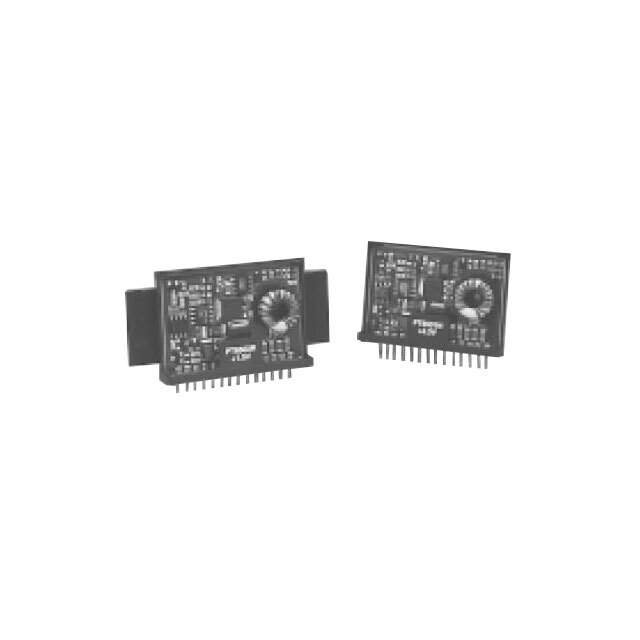

Introducing the PT6501A Power Module from Texas Instruments

The PT6501A is a highly efficient, integrated power module manufactured by Texas Instruments, designed to deliver exceptional performance for a wide range of applications. This innovative product is part of the PT6500 series, which is known for its ease of use and reliability in providing power solutions.

At the heart of the PT6501A is its ability to convert input voltages ranging from 5V to 12V, stepping down to a single, adjustable output voltage that can be finely tuned from 1.5V to 3.5V. This versatility makes it an ideal choice for systems that require a stable and configurable power supply. With an output current capability of up to 1.5A, this power module can comfortably meet the demands of high-performance integrated circuits and microprocessors.

One of the key features of the PT6501A is its integrated heat sink. This design element not only simplifies the thermal management of the power module but also enhances its overall efficiency by ensuring that heat is effectively dissipated, thereby maintaining optimal operating conditions.

The module is encapsulated in a vertically mounted SIP (Single In-line Package), which saves valuable board space and provides a compact power solution. This packaging also allows for easy installation, as it is compatible with standard soldering processes and does not require additional board space for heat spreading components.

Moreover, the PT6501A includes built-in features such as over-current protection and thermal shutdown, safeguarding your system from potential damage due to abnormal operating conditions. These protective measures ensure that the power module remains reliable and continues to perform even in the most demanding situations.

Whether you are designing a sophisticated telecommunications system, a complex digital device, or any other application that requires a compact and efficient power source, the PT6501A from Texas Instruments is the go-to solution. Its robust design, ease of use, and outstanding performance make it a superior choice for engineers and designers looking to optimize their power management systems.

For more detailed specifications and application notes, be sure to visit the Texas Instruments website or consult the PT6501A datasheet.
