Products specifications

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel package
Sensor Type Digital, Local
Sensing Temperature - Local -40°C ~ 125°C
Output Type I²C/SMBus
Operating Supply Voltage 1.4 V ~ 3.6 V
Resolution 7 b
Features One-Shot, Shutdown Mode
Accuracy - Highest (Lowest) ±2°C (±3°C)
Test Condition -10°C ~ 100°C (-40°C ~ 125°C)
Operating Temperature Range -55°C ~ 150°C
Mounting SMD

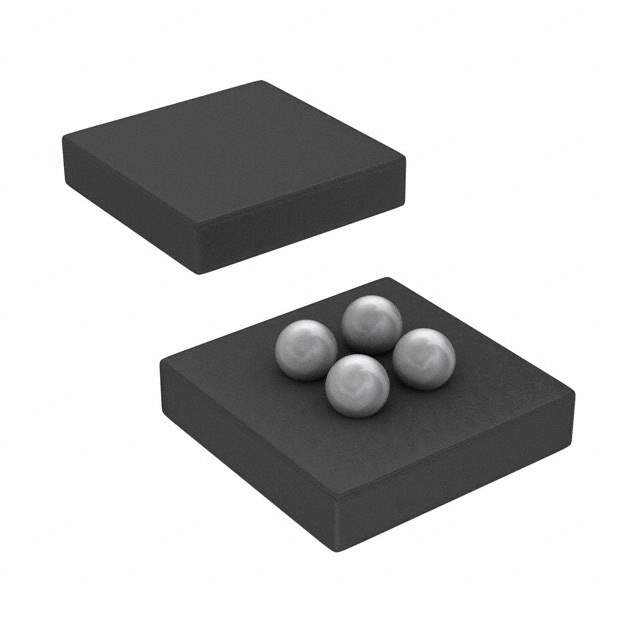

Package 4-UFBGA, DSBGA
Manufacturer Package 4-DSBGA (1x1)
Win Source Part Number 797269-TMP103BYFFT
Popularity Medium
Supply and Demand Status Balance
Family Name TMP103
Introduction Date February 01, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TMP103BYFFT CAD Model

Description

Product Overview: TMP103BYFFT

The TMP103BYFFT is a high-precision digital temperature sensor from Texas Instruments, renowned for its compact form factor and exceptional performance. Designed to cater to a wide array of applications, this temperature sensor is an ideal choice for those requiring accurate temperature readings in space-constrained environments.

Key Features

  • Accuracy: The TMP103BYFFT offers a high degree of accuracy, with a typical temperature accuracy of ±1°C over a wide temperature range. This makes it suitable for applications where precise temperature monitoring is critical.
  • Interface: It utilizes a two-wire, I2C and SMBus interface with up to eight addresses, allowing for easy integration into existing systems and the possibility to network multiple sensors without address conflicts.
  • Size: With an ultra-small X2SON package, it has a minimal footprint, making it perfect for portable devices, space-restricted applications, or densely packed circuit boards.
  • Low Power Consumption: The device operates with very low power consumption, which is essential for battery-powered applications, helping to extend the operational life of the product it's integrated into.
  • Temperature Range: It is capable of measuring temperatures from -40°C to +125°C, allowing it to function effectively in a wide range of environments and conditions.
  • Programmable Resolution: The sensor supports programmable resolution from 9 to 12 bits, enabling users to optimize the trade-off between resolution and conversion time according to their specific needs.

Applications

The TMP103BYFFT is versatile and can be used in various applications, including:

  • Telecommunications
  • Computing systems
  • Battery management systems
  • Industrial controls
  • Environmental monitoring
  • Medical and healthcare systems

With its reliability and Texas Instruments' commitment to quality, the TMP103BYFFT is a superb choice for designers and engineers looking for a temperature sensor that offers both high performance and compactness.
