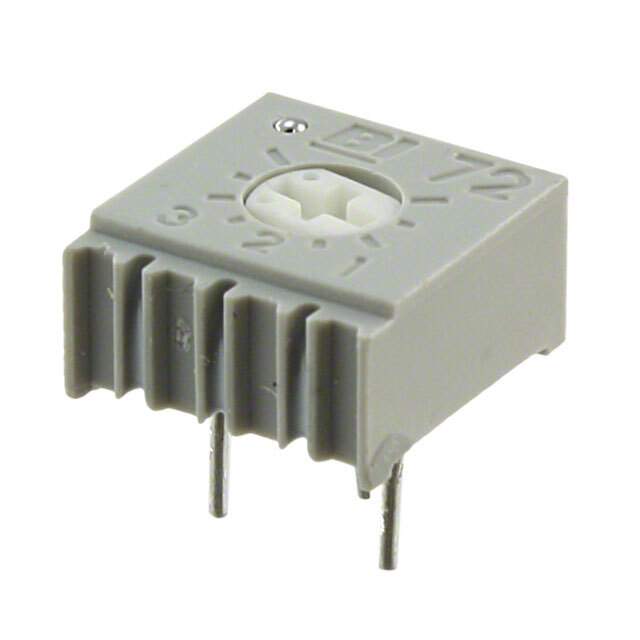

72PR1KLF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr TT Electronics/BI
Series 72
Package Bulk
Resistance 1 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 72PR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 987-1143
Standard Package 100
Win Source Part Number 1174654-72PR1KLF
Ultra Librarian 3D Model Ultra Librarian 72PR1KLF CAD Model

Description

The 1174654-72PR1KLF is a high-quality potentiometer designed for use in electronic devices.

  • Series: 72
  • Termination Style: PC Pins
  • Packaging: Bulk
  • Standard Package: 100
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.5W (1/2W)
  • Turns: One Turn
  • Resistive Material: Cermet
  • Resistance: 1 kOhms
  • Mounting Type: Through-Hole
  • Dimensions: Square, 0.375 inches x 0.375 inches (9.53mm x 9.53mm)
  • ECCN: EAR99
  • REACH: Unaffected
