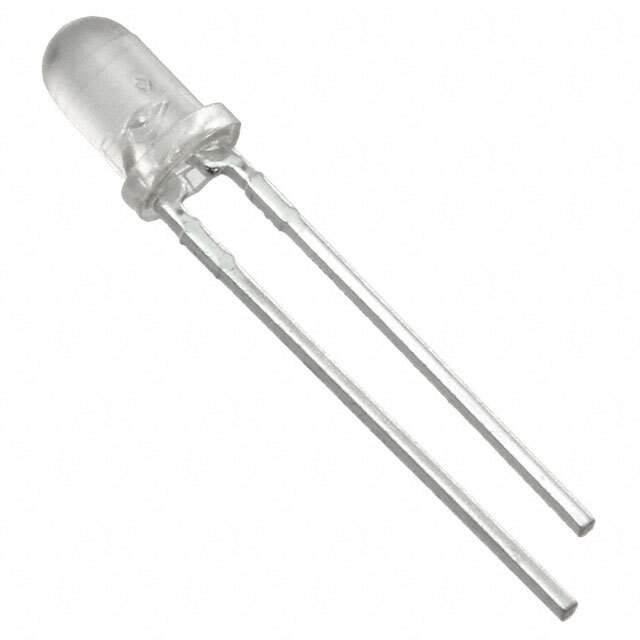

OP166A Real Image
Same model may have multiple batches, images only for reference.

OP166A

Part No OP166A
Manufacturer TT Electronics
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 935NM 50MA T-1 / Infrared (IR) Emitter 935nm 1.6V 50mA 1.95mW/cm² @ 20mA 18° T-1
Datasheet
OP166A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 1.95mW/cm² @ 20mA
Wavelength 935nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 18°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case T-1
Base Product Number OP166
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 365-1049,Q5885853,2266-OP166A
Standard Package 1,000
Win Source Part Number 1203046-OP166A
Ultra Librarian 3D Model Ultra Librarian OP166A CAD Model

Description

The TT Electronics/Optek Technology OP166A is an infrared LED emitter in a T-1 package from TT Electronics/Optek Technology.

  • Viewing Angle: 18 degrees
  • Wavelength: 935nm
  • Forward Voltage (Vf): 1.6V
  • Maximum Forward Current (If): 50mA
  • Radiant Intensity (Ie) minimum: 1.95mW/cm² @ 20mA
  • Operating Temperature: -40°C to 100°C
