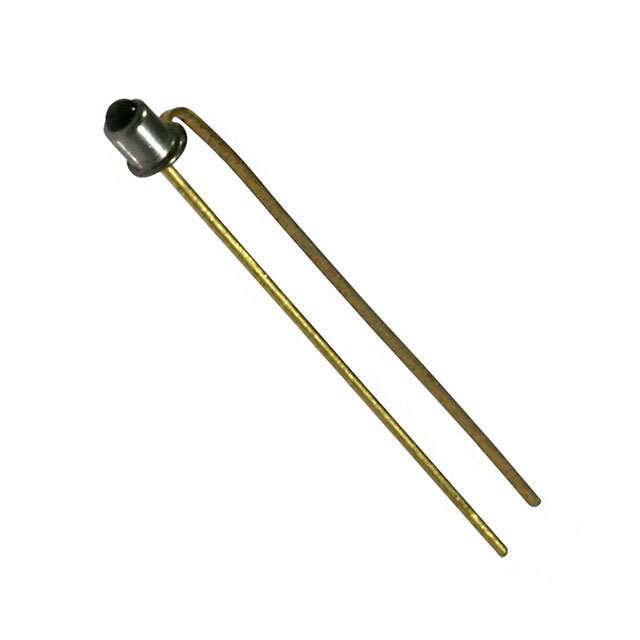

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 1.2mW/cm² @ 50mA
Wavelength 890nm
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 24°
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number OP216
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 365-1895
Standard Package 500
Win Source Part Number 1145345-OP216A
Ultra Librarian 3D Model Ultra Librarian OP216A CAD Model

Description

This electronic component is an infrared LED emitter manufactured by TT Electronics/Optek Technology.

  • Win Source Part Number: 1145345-OP216A
  • Category: Optoelectronics > LED Emitters - Infrared, UV, Visible
  • Viewing Angle: 24 degrees
  • Temperature Range: -65°C to 125°C (TA)
