Products specifications

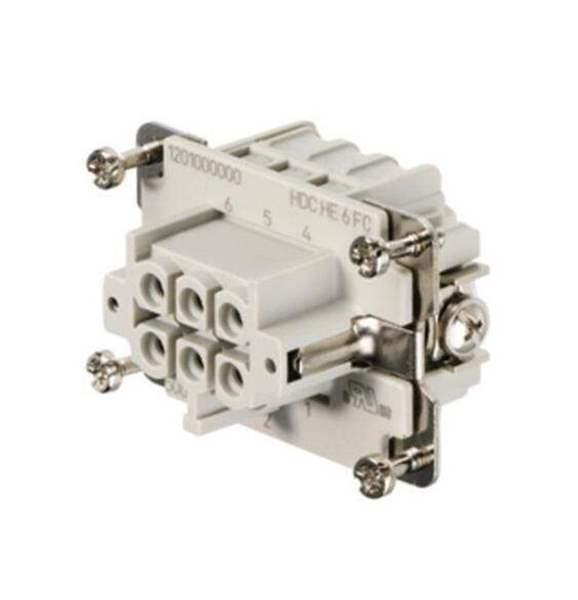

Win Source Part Number WS1205807-1201000000
Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Heavy Duty Connectors Heavy Duty Connector Inserts, Modules
Series Rockstar® HE
Package Bulk
Product Status Active
Connector Type Insert without Contacts
Gender Female
Number of Positions 6+Ground
Size 3
Termination Style Crimp
Ultra Librarian 3D Model Ultra Librarian 1201000000 CAD Model

Description

The rectangular panel cutout frames fit exactly into the standard cutout for heavy-duty connectors. This makes it possible to accommodate up to 40 connectors in a very confined space. • Feeds through prefabricated wiring in confined spaces. • Two-piece, two-tier system • Fast and easy mounting • Standard panel cutout frames for 16- and 24-pole industrial plug-in connectors<br />• The predefined gap achieves a minimum class of protection of IP54 • Large numbers of cables in very confined spaces • Retrofitting of prefabricated wiring also possible<br /> • The manufacturer’s guarantee covering the prefabricated cables remains valid • Integral strain relief to VDE 0619 • Locknuts ensure that working “overhead” is safe and simple
