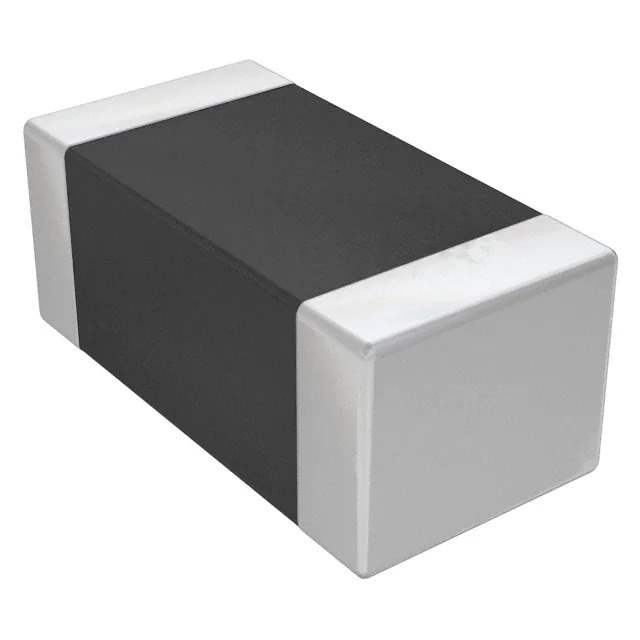

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 32 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 200mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547119-7427921
Ultra Librarian 3D Model Ultra Librarian 7427921 CAD Model

Description

The WE-CBF series by Wurth Electronics Inc offers high-quality ferrite beads and chips for effective filtering and noise suppression.

  • Part Number: 547119-7427921
  • Type: Signal Line Ferrite Bead
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.051" (1.30mm)
  • Impedance: 32 Ohms @ 100 MHz
  • Maximum DC Resistance (DCR): 200mOhm
  • Maximum Current Rating: 500mA
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Surface Mount
