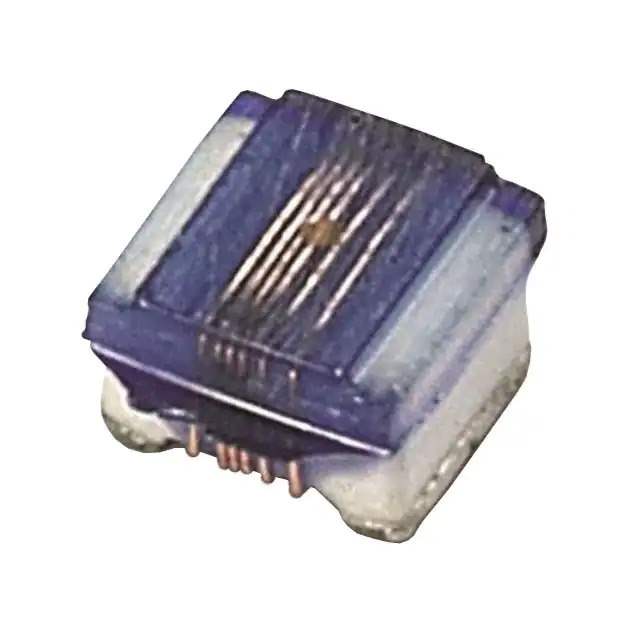

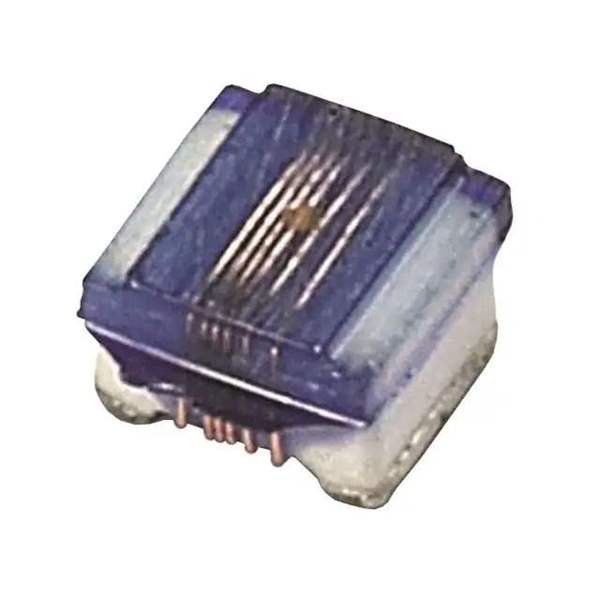

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-KI
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 1.8 nH
Tolerance ±0.2nH
Current Rating (Amps) 700 mA
Shielding Unshielded
DC Resistance (DCR) 50mOhm Max
Q @ Freq 16 @ 250MHz
Frequency - Self Resonant 12.5GHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max) 0.049" (1.25mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857488-744761018A
Ultra Librarian 3D Model Ultra Librarian 744761018A CAD Model

Description

The WE-KI series is a range of drum core, wirewound inductors designed for various electronic applications.

  • Part Number: 857488-744761018A
  • Size: 0.063" L x 0.041" W (1.60mm x 1.05mm)
  • Seated Height: 0.049" (1.25mm)
  • Design: Unshielded
  • Core Material: Ceramic
  • Inductance: 1.8 nH
  • Tolerance: ±0.2nH
  • DC Resistance (DCR): 50mOhm
  • Current Rating: 700mA
  • Operating Temperature Range: -40°C to 125°C
