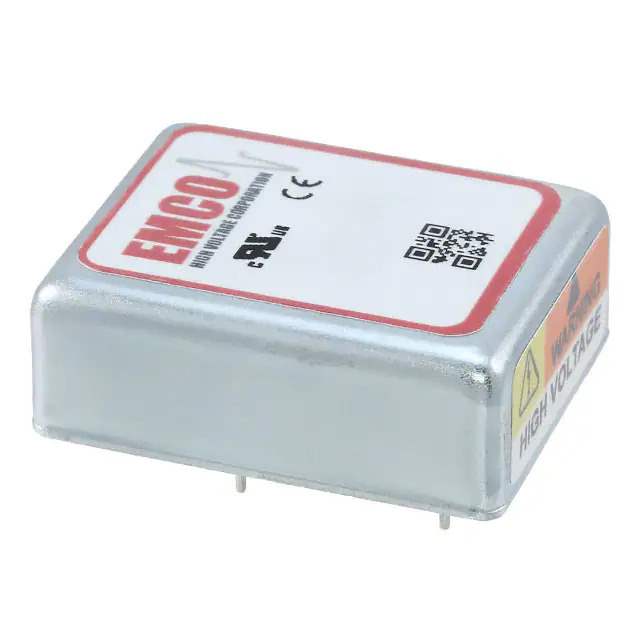

C02 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series XP EMCO - C (1W)
Package Box
Product Status Active
Type High Voltage - Non-Isolated Module
Number of Outputs 1
Voltage - Input (Min) 11.5V
Voltage - Input (Max) 16V
Voltage - Output 1 200V
Current - Output (Max) 5mA
Power (Watts) 1 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 1.40" L x 1.11" W x 0.50" H (35.6mm x 28.2mm x 12.7mm)
Standard Number 62368-1
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 575589-C02
Ultra Librarian 3D Model Ultra Librarian C02 CAD Model

Description

The XP EMCO - C (1W) series is a high voltage non-isolated module designed for power supplies in ITE (Commercial) applications.

  • Size: 1.40" L x 1.11" W x 0.50" H (35.6mm x 28.2mm x 12.7mm)
  • Power Rating: 1W
  • Output: single
  • Voltage Rating: 200V
  • Current Output: 5mA
  • Input Voltage Range: 11.5V to 16V
  • Protection: SCP (Short Circuit Protection)
  • Package: box
  • Mounting: through-hole
  • Manufacturer: XP Power
  • Standard Number: 62368-1
