Product photo

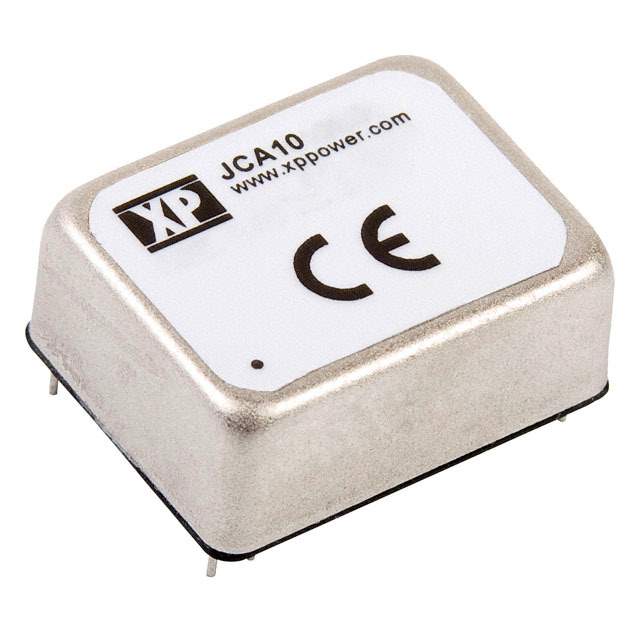

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCA (10W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 420mA, 420mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Standard Number 62368-1
Base Product Number JCA1005
Standard Package 16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1341199-JCA1005D02
Ultra Librarian 3D Model Ultra Librarian JCA1005D02 CAD Model

Description

The XP Power JCA1005D02 is a 10W isolated module used in board mount DC DC converters.

  • Manufacturer: XP Power
  • Power: 10W
  • Type: Isolated Module, Board Mount DC DC Converter
  • Package: Tube
  • Size: 1.00 inches L x 0.80 inches W x 0.39 inches H (25.4mm x 20.3mm x 10.0mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 2
  • Power Output: 10W
  • Voltage Input: 4.5V to 9V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Features: OCP, OVP, SCP, UVLO
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 100°C
