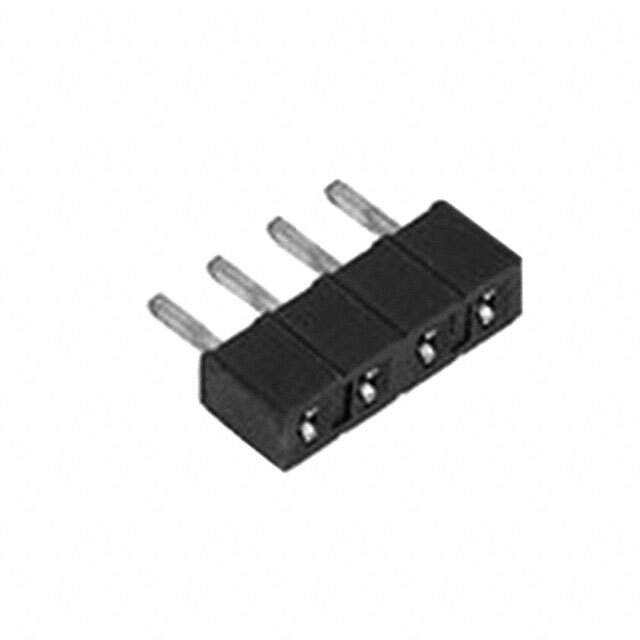

929984-01-04 Real Image
Same model may have multiple batches, images only for reference.

929984-01-04

Part No 929984-01-04
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN RCPT 4POS 0.1 TIN-LEAD PCB  /  4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin-Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series 929
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
Insulation Color Black
Insulation Height 0.150" (3.81mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin-Lead
Current Rating (Amps) 1A
Voltage Rating 1000V
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Contact Material Copper Alloy
Base Product Number 929984
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 05400775263,5400775263,54007752639,7000006252,80620086423,9299840104
Standard Package 100
Win Source Part Number 1157605-929984-01-04
Ultra Librarian 3D Model Ultra Librarian 929984-01-04 CAD Model

Description

The 3M 1157605-929984-01-04 is a connector component that has a receptacle connector type and a forked contact type.

  • Positions: 4
  • Positions Loaded: All
  • Contact Material: Copper alloy
  • Voltage Rating: 1000V
  • Mounting Type: Through-Hole
  • Pitch: 0.100 inches
  • Contact Finish Mating: Tin-Lead
  • Contact Finish Thickness Mating: Not specified
  • Contact Finish Post: Tin
  • Contact Finish Thickness Post: Not specified
  • RoHS: Non-compliant
