Products specifications

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series Artix-7
Package Tray
Number of LABs/CLBs 7925
Number of Logic Elements/Cells 101440
Total RAM Bits 4976640
Number of I/O 210
Voltage - Supply 0.95V ~ 1.05V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 324-LFBGA, CSPBGA
Supplier Device Package 324-CSPBGA (15x15)
Base Product Number XC7A100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 122-2183,XC7A100T-2CSG324C-ND
Standard Package 126
Win Source Part Number 996944-XC7A100T-2CSG324C
Ultra Librarian 3D Model Ultra Librarian XC7A100T-2CSG324C CAD Model

Description

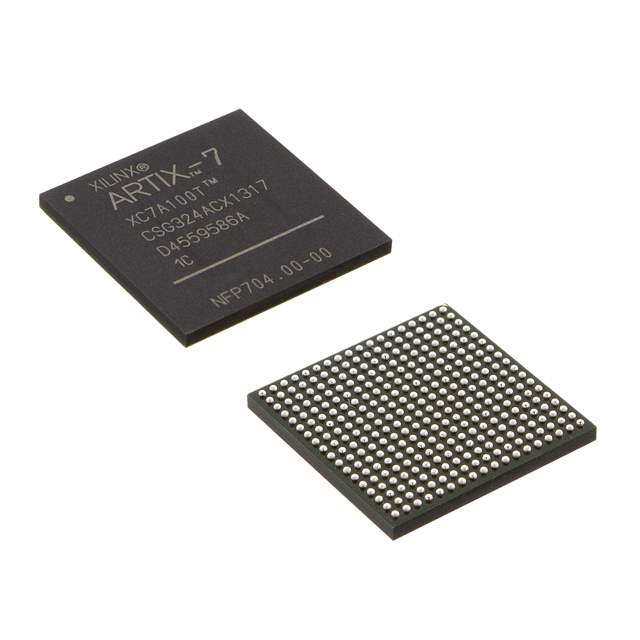

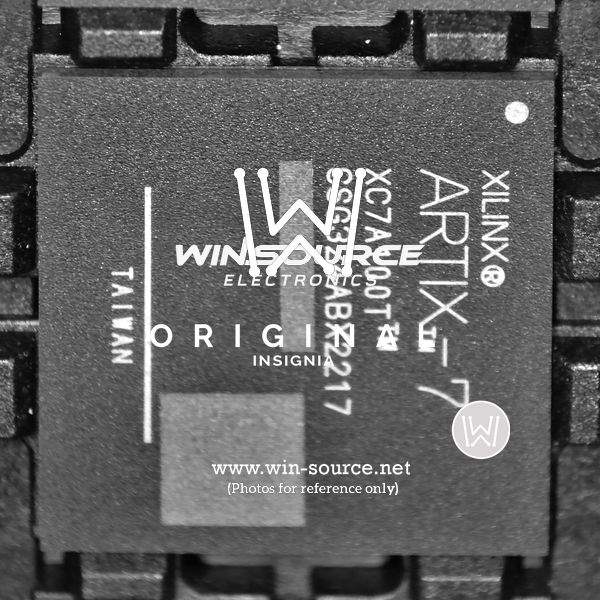

The XC7A100T-2CSG324C is an Artix-7 FPGA (Field-Programmable Gate Array) from AMD (formerly Xilinx). This FPGA is designed for a wide range of applications requiring programmable logic and high-performance processing.

Applications

  • Industrial automation
  • Motor control
  • Image processing
  • Software-defined radio (SDR)
  • Medical imaging

Features

  • 101,440 logic cells
  • 12,680 Logic Slices
  • 4,860 Kb of Block RAM
  • 240 DSP Slices
  • 324-pin CSG324 package
  • Operating temperature range: Commercial (0°C to 85°C)
  • High I/O connectivity
  • Integrated configuration memory

Benefits

  • High performance: Provides high-speed processing and data throughput for demanding applications.
  • Programmability: Allows for flexible hardware customization and adaptation to changing application requirements.
  • Integration: Combines logic, memory, and DSP capabilities on a single chip, reducing board space and system cost.
  • Fast prototyping: Enables rapid prototyping and development of custom hardware solutions.
  • Reconfigurability: Can be reconfigured in the field, allowing for upgrades and bug fixes without replacing hardware.

Additional Details

The Artix-7 family is known for its low power consumption and high performance-per-watt. The XC7A100T-2CSG324C is a popular choice for applications where power efficiency is critical. The speed grade '-2' indicates the performance level of the device. The CSG324 package is a fine-pitch ball grid array (BGA) package. It requires specialized soldering equipment. Programming is done using Xilinx's Vivado Design Suite. The device contains various hard IP blocks, such as memory controllers and Ethernet MACs, which can be used to accelerate development. Signal integrity analysis and proper board design are essential for achieving optimal performance with this FPGA. The device supports various configuration modes, including JTAG, SPI, and BPI.
