Products specifications Report Issue?

Category Circuit Protection>Inrush Current Limiters (ICL)
Mfr Ametherm
Series SURGE-GARD™
Package Bulk
R @ 25°C 5 Ohms
Tolerance ±15%
Current - Steady State Max 4 A
R @ Current 150 mOhms
Diameter 0.600" (15.24mm)
Lead Spacing 0.310" (7.87mm)
Approval Agency CSA, UR
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Standard Package 500 pcs
Win Source Part Number 1383421-SG310
Ultra Librarian 3D Model Ultra Librarian SG310 CAD Model

Description

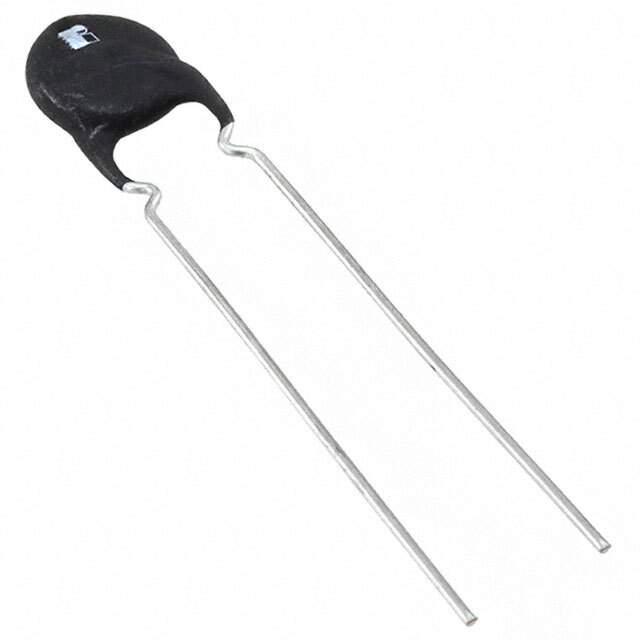

The SG310 is an inrush current limiter (ICL) from the SURGE-GARD™ series. It is designed to limit the inrush current during the startup of electronic circuits.

  • Tolerance: ±15%
  • Steady State Current: 4A (Max)
  • Resistance (25°C): 5 Ohms
  • Resistance @ Specified Current: 150 mOhms
  • Package: Bulk
  • Lead Spacing: 0.310" (7.87mm)
  • Diameter: 0.600" (15.24mm)
  • ECCN: EAR99
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • Approvals: CSA, UR
