Analog Devices Inc. ADG1419BCPZ-REEL7

The ADG1419BCPZ-REEL7 is a robust, high-performance analog switch from Analog Devices Inc., a leading global manufacturer known for its precision engineering and innovative design in the field of semiconductor technology. This particular model is part of the ADG1419 series and is designed to deliver exceptional signal integrity with minimal power consumption, making it an ideal choice for a wide range of applications, including data acquisition systems, communication devices, and industrial automation.

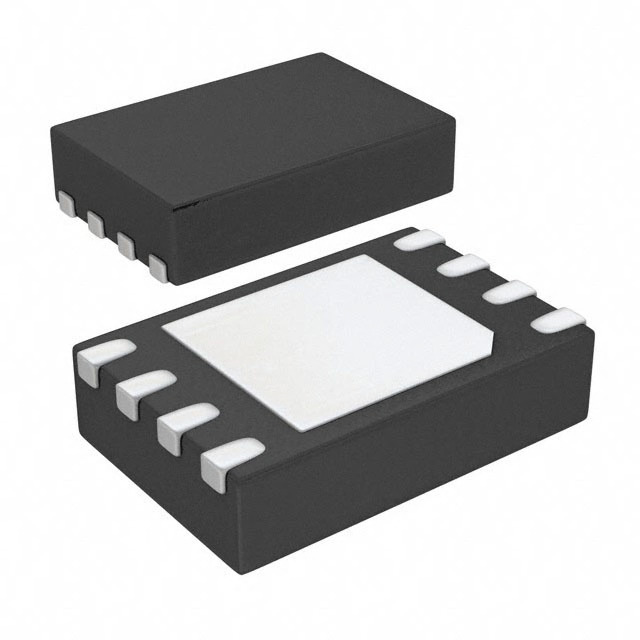

Encased in a compact LFCSP (Lead Frame Chip Scale Package), the ADG1419BCPZ-REEL7 offers a single-pole, single-throw (SPST) configuration. Its design is optimized for bidirectional data flow and features a low on-resistance, typically around 0.7 ohms, which contributes to its high level of performance by minimizing signal distortion and ensuring a clear transmission path.

The switch operates efficiently across a broad voltage range of ±5 V to ±22 V or a single supply of 9 V to 40 V, providing flexibility for various circuit designs. The device also boasts fast switching times, with turn-on and turn-off times typically in the nanosecond range, which is critical for high-speed applications where timing is crucial.

One of the key advantages of the ADG1419BCPZ-REEL7 is its enhanced electrostatic discharge (ESD) protection. This feature safeguards the device against the potential damage caused by static electricity, thereby ensuring a longer operational life and reliability in harsh environments.

The ADG1419BCPZ-REEL7 is delivered in a tape and reel format (REEL7), which facilitates efficient handling and placement during the manufacturing process, especially for high-volume production. This packaging method is designed to be compatible with automated assembly processes, reducing manual labor and enhancing production throughput.

Whether it's for professional-grade audio equipment, precision instrumentation, or automated test equipment, the ADG1419BCPZ-REEL7 from Analog Devices Inc. stands out as a versatile and reliable component that engineers can trust to perform consistently under demanding conditions.

For detailed technical specifications, application notes, and support resources, customers are encouraged to visit the official Analog Devices website or contact their local sales representative.
