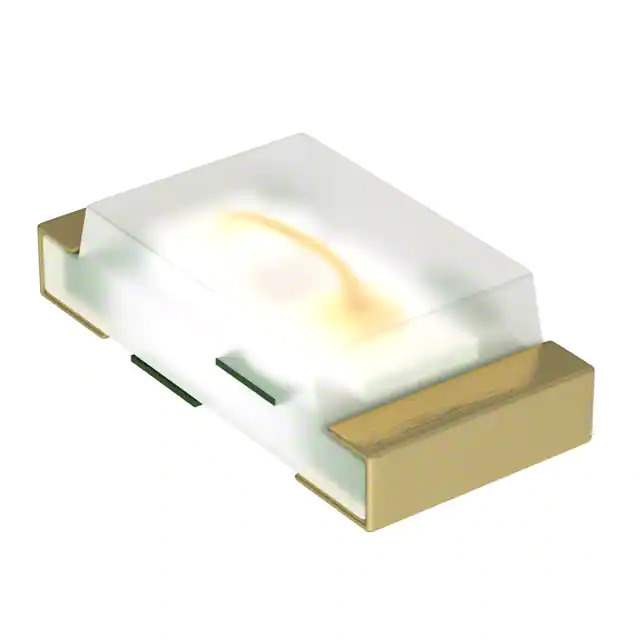

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Product Status Active
Color Yellow-Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 60mcd
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 145°
Mounting Type Surface Mount
Wavelength - Dominant 573nm
Wavelength - Peak 574nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.45mm
Base Product Number ASMT-RF
Standard Package 4,000 pcs
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 564999-ASMT-RF45-AN002
Ultra Librarian 3D Model Ultra Librarian ASMT-RF45-AN002 CAD Model

Description

The Broadcom Limited 564999-ASMT-RF45-AN002 is a discrete LED indication component that falls under the category of Optoelectronics.

  • LED Color: Yellow-Green
  • Viewing Angle: 145 degrees
  • Package: Tape and Reel
  • Standard Package: 4,000 pieces
  • Size/Dimension: 1.60mm L x 0.80mm W
  • Configuration: Standard
  • Lens Color: White with Diffused Transparency
  • Millicandela Rating: 60mcd
  • Forward Voltage: 2V
  • Test Current: 20mA
  • Wavelength Dominant: 573nm
  • Wavelength Peak: 574nm
  • Height: 0.45mm
  • Mounting Type: Surface Mount
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603 (1608 Metric)
  • ECCN: EAR99
  • MSL Level: 2A
  • REACH Status: Unaffected
