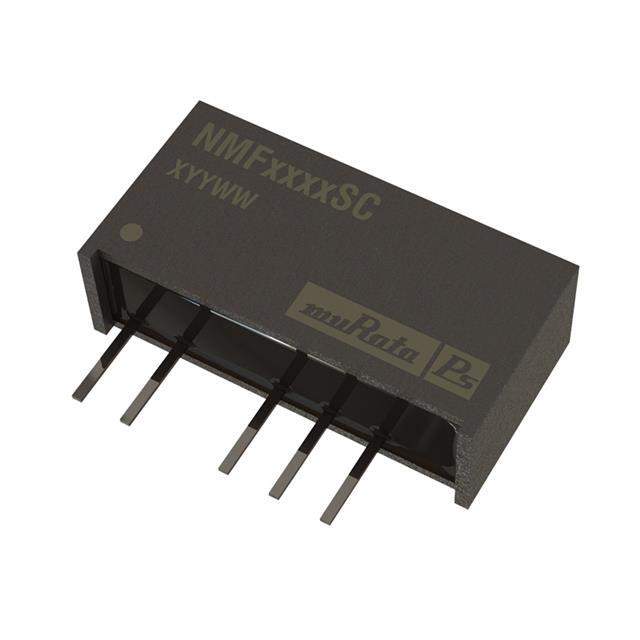

The NMF0512S is an isolated DC-DC converter manufactured by C&D Technologies. It is designed to convert a 5V DC input voltage to a 12V DC output voltage while providing electrical isolation between the input and output circuits. This isolation is critical in applications where safety or noise reduction is required.

Applications:

• Industrial control systems
• Instrumentation
• Medical equipment
• Data acquisition systems
• Isolated power supplies
• Ground loop elimination
• Sensor isolation
• Gate driver power supplies
• Telecommunications equipment

Features:

• 5V input voltage
• 12V output voltage
• 1W output power
• 1000VDC isolation
• Short circuit protection
• Compact package
• High efficiency
• Low ripple and noise

Benefits:

• Electrical isolation for safety and noise reduction
• Stable and regulated output voltage
• Protection against short circuits
• Compact size for space-constrained applications
• Efficient power conversion
• Reduced noise in sensitive circuits
• Improved system reliability

Additional Details:

The NMF0512S provides a robust solution for isolating power in a variety of applications. The 1000VDC isolation rating ensures that the input and output circuits are electrically separated, preventing ground loops and protecting sensitive components from voltage spikes or surges. The integrated short circuit protection safeguards the converter and the connected circuitry from damage in the event of an overload. C&D Technologies is known for producing reliable power conversion products, and the NMF0512S is designed for long-term performance in demanding environments. Proper filtering and decoupling techniques are recommended to minimize ripple and noise. Datasheets provide detailed information on input and output characteristics, isolation specifications, and thermal considerations.
