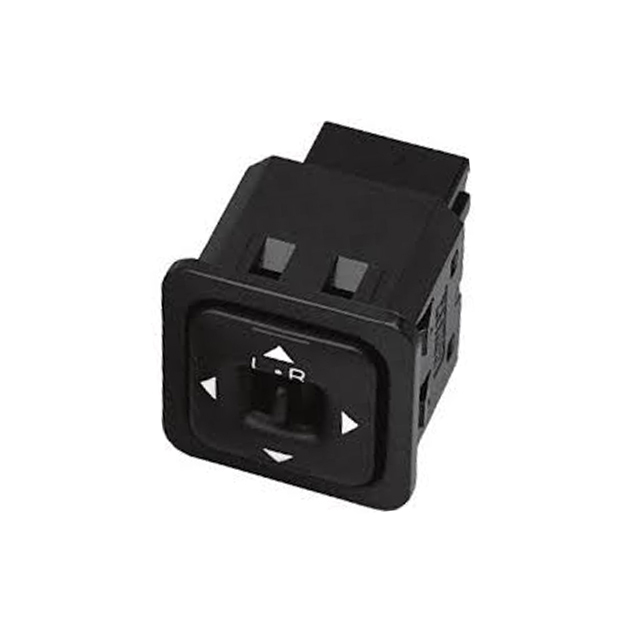

CS41001E C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer C&K
Series CS-41001E
Packaging Bulk
Type Navigation Switch, 2 - Axis
Actuator Type Pushbutton
Switch Function 4-Way Directional, Center Select
Output Digital (Mechanical Switch)
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 12 V
Mounting Type Panel Mount, Snap-In
Termination Style Wire Leads with Connector
Temperature Range - Operating -40°C ~ 90°C
Panel Cutout Dimensions Rectangular - 36.00mm x 35.70mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Operating Force 500gf
Base Product Number CS41001
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1477965-CS41001E
Ultra Librarian 3D Model Ultra Librarian CS41001E CAD Model
