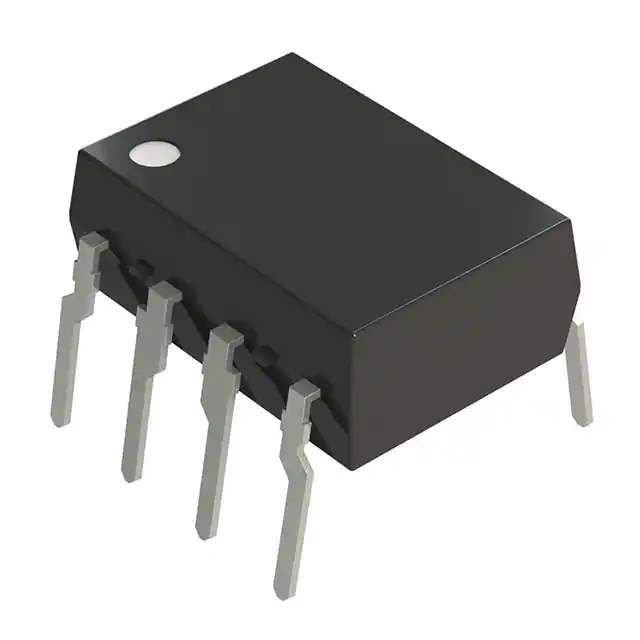

PS7141-2A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 150 mA
On-State Resistance (Max) 30 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 657060-PS7141-2A
Ultra Librarian 3D Model Ultra Librarian PS7141-2A CAD Model

Description

The 657060-PS7141-2A is a solid-state relay designed for high-performance switching applications.

  • Series: PS and OCMOS series
  • Circuit Configuration: SPST-NO (1 Form A)
  • Maximum Load Current: 150mA
  • Voltage Range: 0V to 400V
  • On-State Resistance: 30 Ohms
  • Voltage Input: 1.2VDC
  • Switching: AC and DC loads
  • Package: 8-DIP
  • Mounting: Through-hole mountable
  • Status: Obsolete product
  • Manufacturer: CEL
