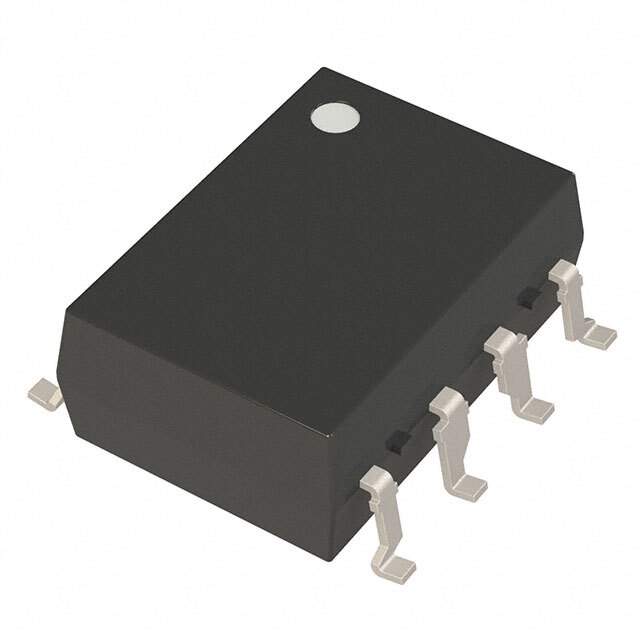

PS9613L Real Image
Same model may have multiple batches, images only for reference.

PS9613L

Part No PS9613L
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLL 8SMD GW / Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin PDIP SMD
Datasheet
PS9613L Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 15kV/μs
Input Type DC
Output Type Open Collector
Output Current per Channel 15mA
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Maximum) 750ns, 500ns
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Maximum) 25mA
Operating Supply Voltage 4.5 V ~ 30 V
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 8-SMD, Gull Wing
Manufacturer Package 8-SMD Gull Wing
Win Source Part Number 792580-PS9613L
Popularity Medium
Supply and Demand Status Limited
Family Name PS9613L
Introduction Date September 10, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PS9613L CAD Model

Description

The CEL PS9613L is an open collector output type DC input optocoupler. CEL.

  • Package: 8-SMD Gull Wing
  • Output Current per Channel: 15mA
  • Common Mode Transient Immunity (minimum): 15kV/μs
  • Voltage Isolation: 5000Vrms
  • Voltage Forward: 1.65V
  • Data Rate: 1Mbps
