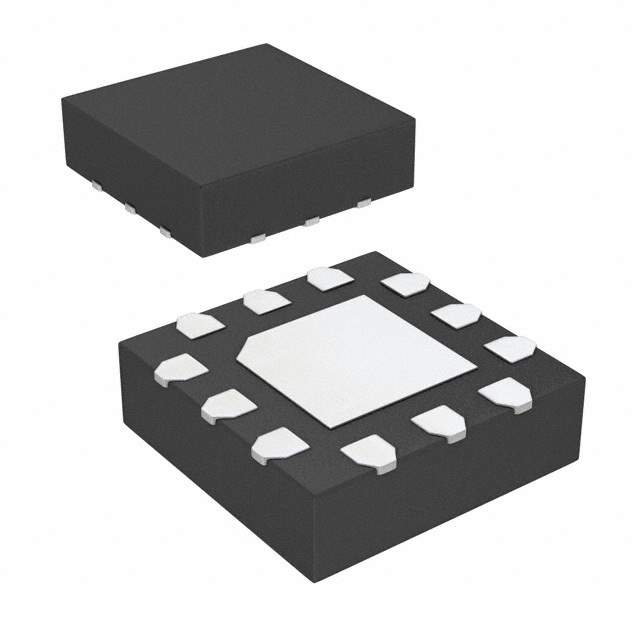

UPD5904T7K-E2-A Real Image
Same model may have multiple batches, images only for reference.

UPD5904T7K-E2-A

Part No UPD5904T7K-E2-A
Manufacturer CEL
Catalog RF Switches
Description RF SWITCH SP4T 6GHZ 12QFN
Datasheet
UPD5904T7K-E2-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Frequency - Lower 50MHz
Frequency - Upper 6GHz
Isolation @ Frequency 20dB @ 6GHz (typ)
Insertion Loss @ Frequency 0.75dB @ 6GHz
Topology Reflective
Circuit SP4T
Features DC Blocked
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.3 V to 3.3 V
RF Type General Purpose
Case / Package 12-QFN (2x2)
Win Source Part Number 104807-UPD5904T7K-E2-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPD5904T7K-E2-A CAD Model

Description

The CEL UPD5904T7K-E2-A is an electronic component that is designed to be used in various applications.

  • Type: Reflective SP4T switch
  • Impedance: 50 ohms
  • Frequency Range: 50MHz to 6GHz
  • Isolation: 20dB @ 6GHz (typ)
  • Insertion Loss: 0.75dB @ 6GHz
  • Supply and Demand: Balanced
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete (EOL)
  • Packaging: Cut reel
  • Case/Package: 12-QFN (2x2)
