Products specifications

Categories RF/IF and RFID
Manufacturer CEL
Part Status Obsolete(EOL)
Type Switch, SPDT
Frequency 500MHz ~ 2.5GHz
For Use With/Related Products UPG2010TB
Supplied Contents Board
Win Source Part Number 791739-UPG2010TB-EVAL
Popularity Medium
Supply and Demand Status Limited
Family Name UPG2010TB
Introduction Date December 26, 2002
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UPG2010TB-EVAL CAD Model

Description

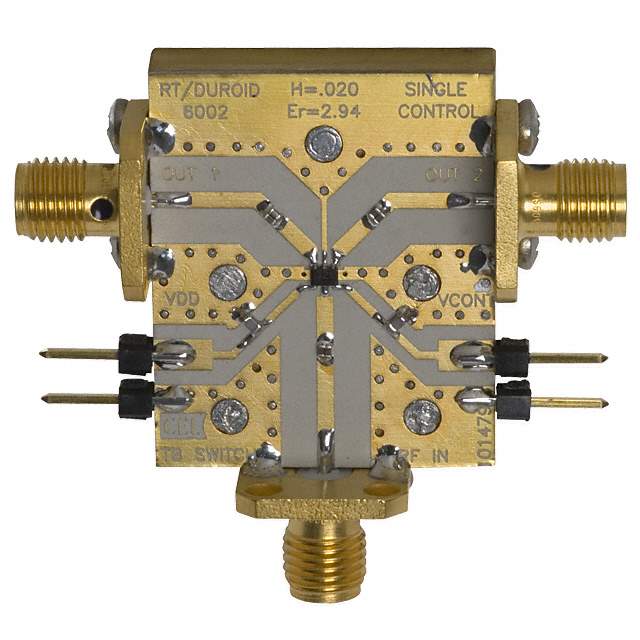

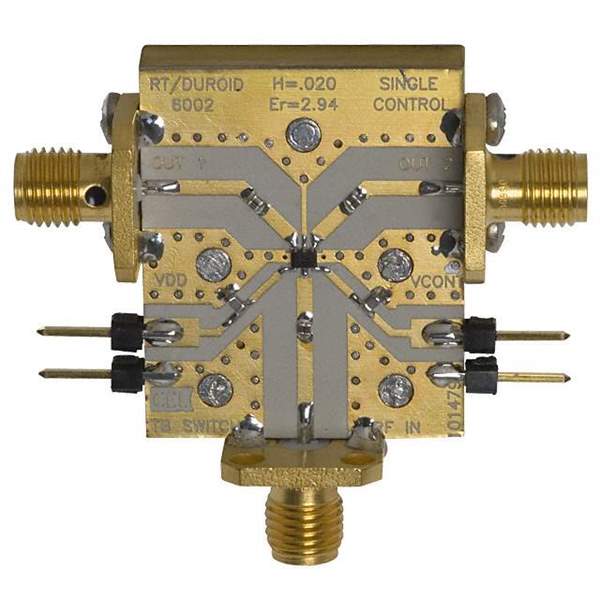

The UPG2010TB-EVAL is an evaluation board designed to assess the performance and functionality of the UPG2010TB, a high-performance SPDT (Single-Pole Double-Throw) switch from CEL (California Eastern Laboratories). This evaluation board provides a convenient platform for engineers and designers to test and integrate the UPG2010TB into their systems.

Applications:

  • Wireless LAN (WLAN)
  • Bluetooth devices
  • Cellular communication
  • Test and measurement equipment
  • General RF switching applications

Features:

  • UPG2010TB SPDT Switch: Features the CEL UPG2010TB SPDT switch, known for its low insertion loss and high isolation.
  • SMA Connectors: Equipped with SMA connectors for easy connection to test equipment and other RF components.
  • On-Board Control Circuitry: Includes necessary control circuitry for operating the UPG2010TB switch.
  • 50 Ohm Impedance: Designed for a 50-ohm impedance environment, ensuring compatibility with standard RF systems.
  • Compact Size: Small form factor for easy integration into test setups.
  • Clearly Labeled Test Points: Provides clearly labeled test points for convenient monitoring of signals.

Benefits:

  • Easy Evaluation: Simplifies the evaluation process of the UPG2010TB switch, reducing development time.
  • Accurate Performance Measurement: Allows for precise measurement of the switch's performance characteristics.
  • Versatile Testing Platform: Provides a versatile platform for testing various RF switching applications.
  • Reduced Development Time: Accelerates the design and integration process by providing a ready-to-use evaluation board.

Additional Details:

The UPG2010TB-EVAL board is essential for engineers looking to incorporate the UPG2010TB SPDT switch into their designs. It allows for thorough testing and characterization of the switch's performance in different operating conditions. The evaluation board includes all the necessary components and connectors for immediate use, making it a valuable tool for RF engineers and designers. The UPG2010TB switch itself features low insertion loss, high isolation, and fast switching speed, making it suitable for a wide range of RF applications. The evaluation board helps to verify these characteristics and optimize the switch's performance in the target application. The board allows designers to optimize performance and ensure that the switch meets the specific requirements of their applications. The evaluation board is supplied with documentation that details the switch’s characteristics, recommended operating conditions and control methodology.
