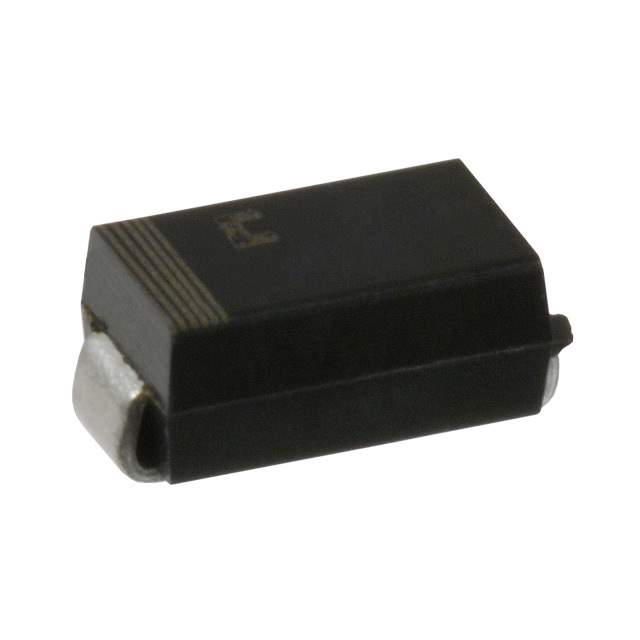

CDBA360-HF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Capacitance @ Vr, F 250pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -50°C ~ 150°C
Base Product Number CDBA360
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1703-1,641-1703-2,641-1703-6
Standard Package 5,000
Win Source Part Number 1325715-CDBA360-HF
Ultra Librarian 3D Model Ultra Librarian CDBA360-HF CAD Model

Description

The Comchip Technology 1325715-CDBA360-HF is a Schottky diode that has a fast recovery of less than 500ns and more than 200mA (Io).

  • Recovery: Fast recovery (< 500ns, > 200mA (Io))
  • Mounting: Surface
  • Package: DO-214AC (SMA)
  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 3A
  • Maximum Forward Voltage: 700mV @ 3A
  • Reverse Leakage Current: 500 µA @ 60V
  • Capacitance: 250pF @ 4V and 1MHz
  • Operating Temperature Range: from -50°C to 150°C
  • ROHS3: Compliant
