Same model may have multiple batches, images only for reference.

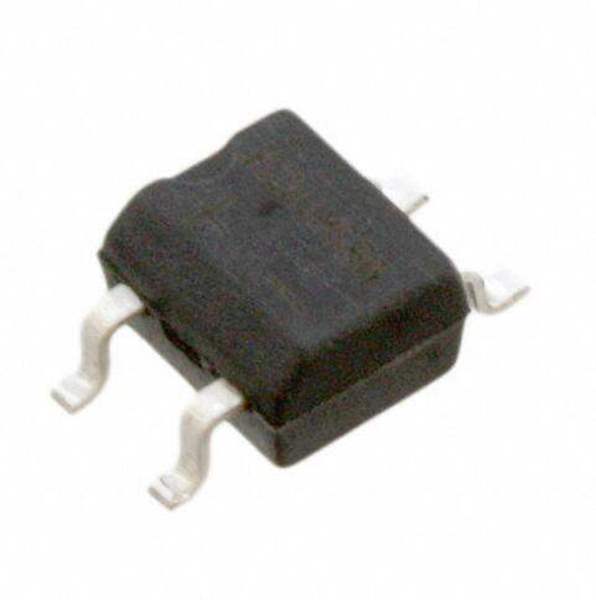

CDBHM160L-HFComchip Technology
Same model may have multiple batches, images only for reference.

CDBHM160L-HF

Part No CDBHM160L-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 60V 1A MBS
Datasheet
CDBHM160L-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Comchip Technology
Category Discrete Semiconductor Products Diodes Bridge Rectifiers
Part Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 60 V
Voltage - Forward (Vf) (Max) @ If 650 mV @ 1 A
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Operating Temperature -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package MBS
Win Source Part Number WS1304263-CDBHM160L-HF
Ultra Librarian 3D Model Ultra Librarian CDBHM160L-HF CAD Model

Description

Bridge Rectifier Single Phase Schottky 60 V Surface Mount MBS
