Same model may have multiple batches, images only for reference.

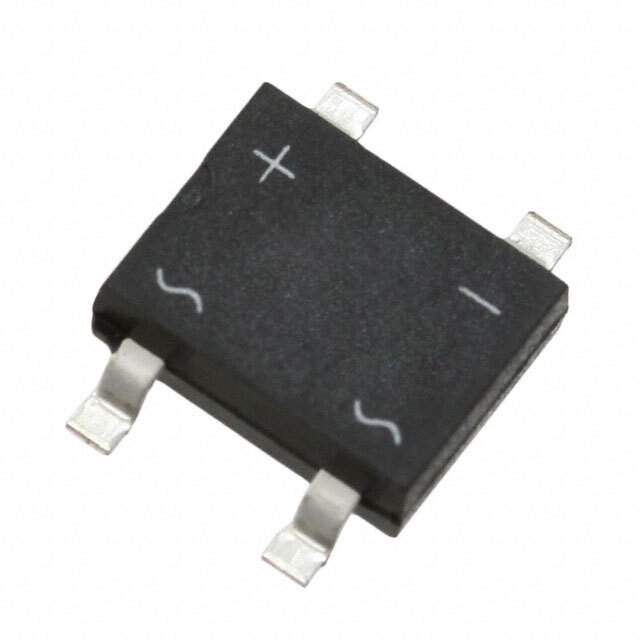

DF005ST-G Real Image
Same model may have multiple batches, images only for reference.

DF005ST-G

Part No DF005ST-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 50V 1A DFS
Datasheet
DF005ST-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 9 Weeks
Features Bridge Rectifier Single Phase Standard 50 V Surface Mount DFS
Manufacturer Comchip Technology
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 4-SMD, Gull Wing
Case / Package DFS
Family Name DF005
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868354-DF005ST-G
Ultra Librarian 3D Model Ultra Librarian DF005ST-G CAD Model

Description

The Comchip Technology DF005 bridge rectifier is a single-phase standard rectifier with a surface mount DFS package.

  • Family: DF005
  • Product Type: Discrete semiconductor products
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Maximum Voltage: 50V
  • Package: 4-SMD, Gull Wing
  • Packaging: Supplied on a reel
