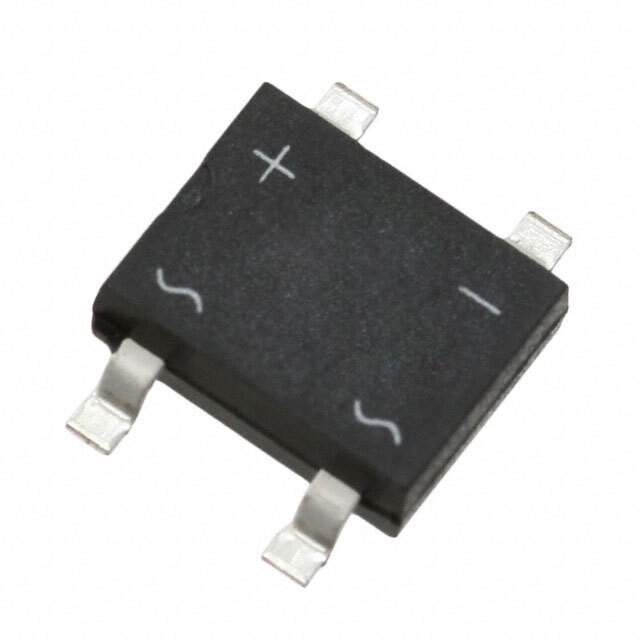

Products specifications

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFS
Win Source Part Number 1032847-DF04ST-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian DF04ST-G CAD Model

Description

The Comchip Technology Diode is a single-phase standard technology diode that comes with a current rating of 1A and a forward voltage of 1.1V @ 1A.

  • Current Rating: 1A
  • Forward Voltage: 1.1V @ 1A
  • Maximum Peak Reverse Voltage: 400V
  • Reverse Leakage Current: 10μA @ 400V
  • Mounting Style: SMD (SMT)
  • Status: Active
  • Supply and Demand: Balanced
