CS335

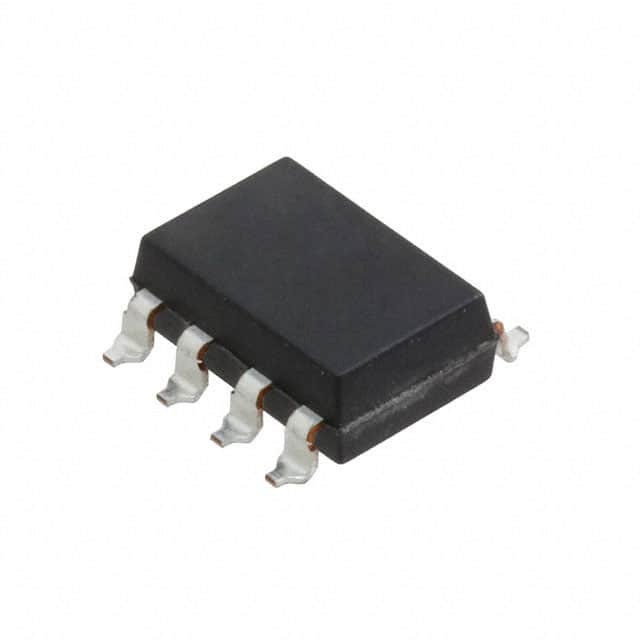

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Coto Technology
Series COTOMOS™
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.37VDC
Voltage - Load 0 V ~ 80 V
Load Current 80 mA
On-State Resistance (Max) 30 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 45 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 916054-CS335
Ultra Librarian 3D Model Ultra Librarian CS335 CAD Model

Description

The COTOMOS™ series solid state relay with model number 916054-CS335 is a reliable and efficient electronic component for various applications. It features a gull wing termination style and comes in a surface mount package.

  • Series: COTOMOS™
  • Model Number: 916054-CS335
  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Voltage Input: 1.37VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • On-State Resistance (Max): 30 Ohms
  • Load Current: 80 mA
  • Voltage Load: 0 V to 80 V
  • Package: 8-SMD
  • Manufacturer: Coto Technology
  • Status: Obsolete
  • Discount: 31%
  • REACH: Compliant
  • ECCN: EAR99
  • MSL Level: 2 (1 year)
