Products specifications

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 209
Package Tube
Product Status Active
Circuit SPST
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.180" (4.57mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material -
Length 0.258" (6.55mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376375-209-2LPST
Ultra Librarian 3D Model Ultra Librarian 209-2LPST CAD Model

Description

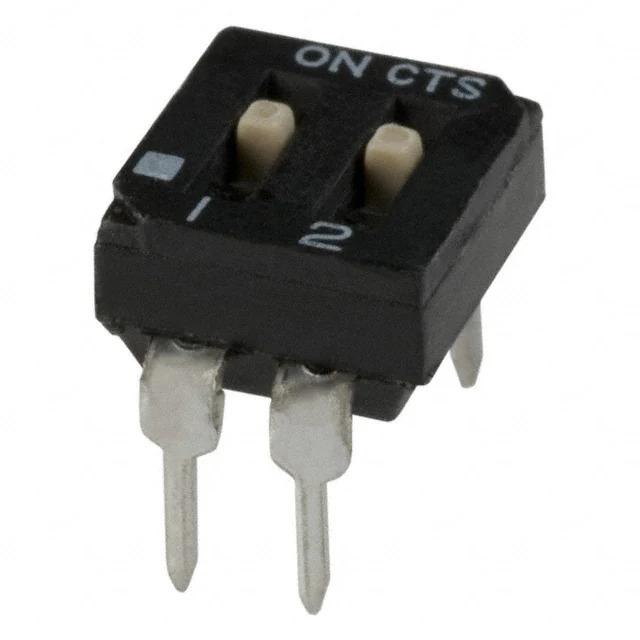

The 209-2LPST is a DIP switch from CTS Electrocomponents.

  • Mounting: Through-hole
  • Current Rating: 100mA
  • Voltage Rating: 20VDC
  • Number of Positions: 2
  • Circuit Configuration: SPST
  • Actuator: Slide
  • Termination Style: PC pin
  • Mechanical Life: 2,000 cycles
  • Washable: Yes
