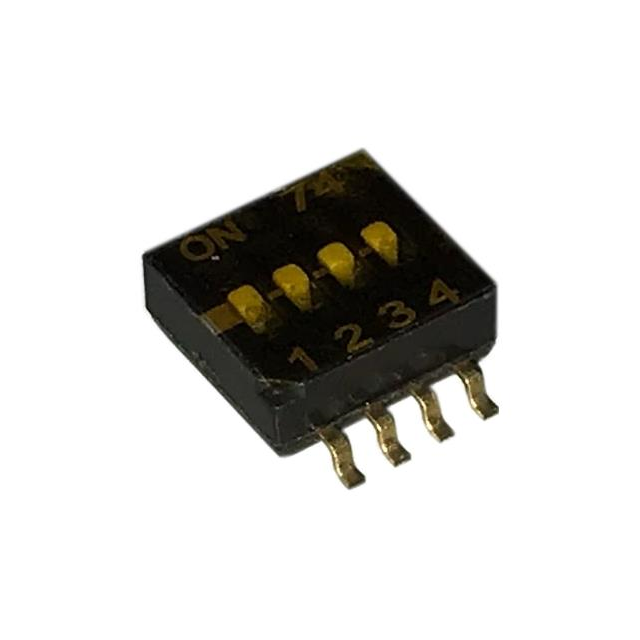

218-4LPSTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Series 218
Packaging Reel package
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Length 0.246" (6.25mm)
Operating Temperature Range -55°C ~ 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 761810-218-4LPSTR
Popularity Medium
Supply and Demand Status Limited
Family Name 218
Introduction Date August 07, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 218-4LPSTR CAD Model

Description

It is designed for use in various electronic applications.

  • Series: 218
  • Packaging: Reel
  • Positions: 4
  • Pitch: 0.050" (1.27mm)
  • Termination: Gull Wing, Half
  • Operating Temperature: -55°C ~ 85°C
  • Features: Epoxy Sealed Terminals, Tape Seal
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.104" (2.65mm)
  • Length: 0.246" (6.25mm)
  • Mounting: SMD
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical Life: 1,000 cycles
  • Washable: Yes
  • Manufacturer: CTS Electrocomponents
