Same model may have multiple batches, images only for reference.

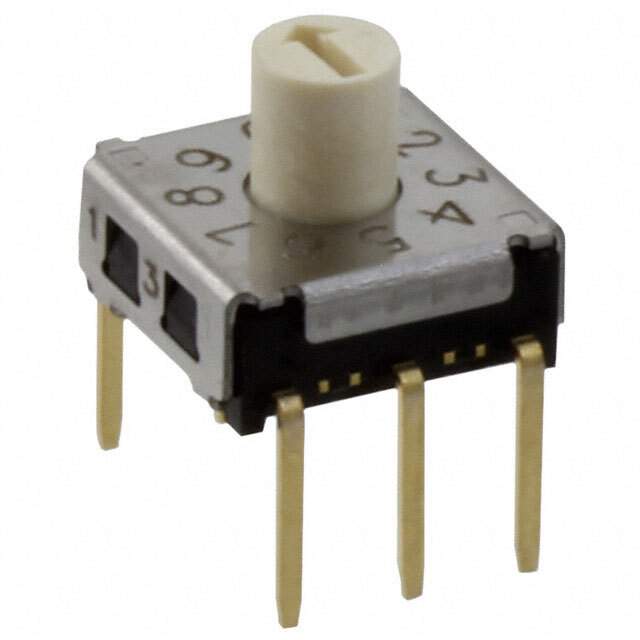

A6K-102RS Real Image
Same model may have multiple batches, images only for reference.

A6K-102RS

Part No A6K-102RS
Manufacturer Omron
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 25MA 24V / Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6K
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.236" (6.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -30°C ~ 80°C
Length 0.283" (7.20mm)
Electrical Life 20,000 Steps
Base Product Number A6K-102
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9020
Other Names A6K-102RS-ND,Z6124,2266-A6K-102RS,A6K102RS
Standard Package 63
Win Source Part Number 1038493-A6K-102RS
Ultra Librarian 3D Model Ultra Librarian A6K-102RS CAD Model

Description

The Omron A6K series DIP switch has 10 number of positions and a pitch of 0.100" (2.54mm), full.

  • Termination Style: PC Pin
  • Contact Finish: gold
  • Package: tube
  • Voltage Rating: 24VDC
  • Height Above Board: 0.236" (6.00mm)
  • Length: 0.283" (7.20mm)
  • Circuit: BCD
  • Actuator Type: rotary with shaft
  • Electrical Life: 20,000 steps
  • Mechanical Life: - (not specified)
  • Actuator Level: raised
  • Washable: No
  • Mounting Type: through hole
  • Temperature Range: between -30°C to 80°C
  • Alternative Parts: DRD10RAE, A6K-102RF, A6KV-102RF, A6KV-104RF, RTE1010N14, RTE1002V14, and RTE1000N14A6K102RS
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9020
  • Base Product Number: A6K-102
