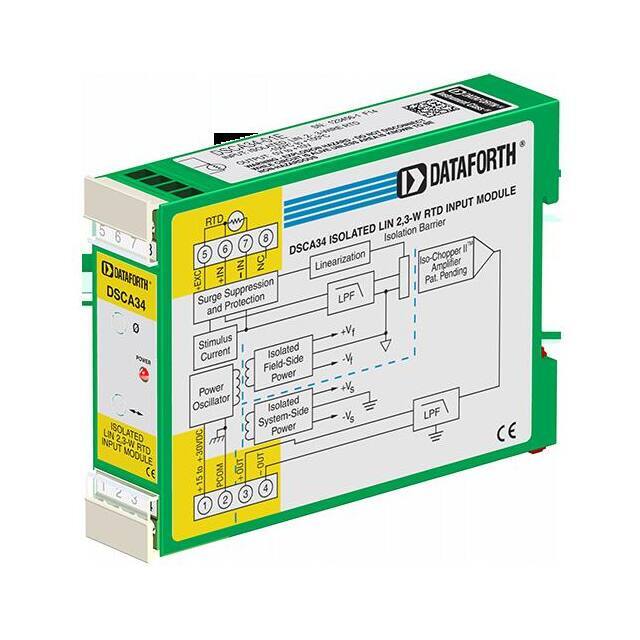

DSCA34-01E
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Industrial Automation and Controls - Signal Conditioners and Isolators
Mfr DATAFORTH
Series DSCA
Package Bag
Product Status Active
Type Signal Conditioner
Input Type Temperature
Input Range (Additional) -100°C ~ 100°C
Output Type Current
Output Range 0 ~ 20mA
Isolation 1500V
Voltage - Supply 15 ~ 30VDC
Mounting Type DIN Rail
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 80°C
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9060
Win Source Part Number 914656-DSCA34-01E
Ultra Librarian 3D Model Ultra Librarian DSCA34-01E CAD Model

Description

The 914656-DSCA34-01E is a signal conditioner from the DSCA series. DATAFORTH manufactures it.

  • Function: Temperature to Current
  • Termination Style: Screw Terminal
  • Mounting Type: DIN Rail
  • Isolation: 1500V
  • Voltage Supply: 15 ~ 30VDC
  • Operating Temperature: -40°C to 80°C
