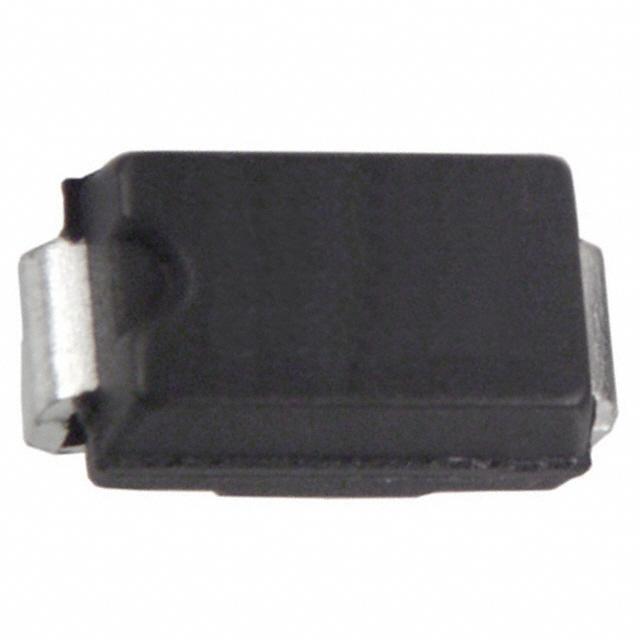

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 75 ns
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC, SMA
Operating Temperature - Junction -50°C ~ 150°C
Standard Package 7,500 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 396288-US1K
Ultra Librarian 3D Model Ultra Librarian US1K CAD Model

Description

The 396288-US1K is a fast recovery diode rectifier designed for applications requiring a maximum DC reverse voltage of 800V and an average rectified current of 1A.

  • Forward Voltage @: 1A is 1.7V
  • Reverse Recovery Time: 75ns
  • Reverse Leakage Current @: 800V is 5µA
  • Operating Temperature Range: -50°C to 150°C
  • Package Type: DO-214AC, which is a surface mount type
  • Standard Package: 7500 pcs
  • Widely Used In: the field of discrete semiconductor products
