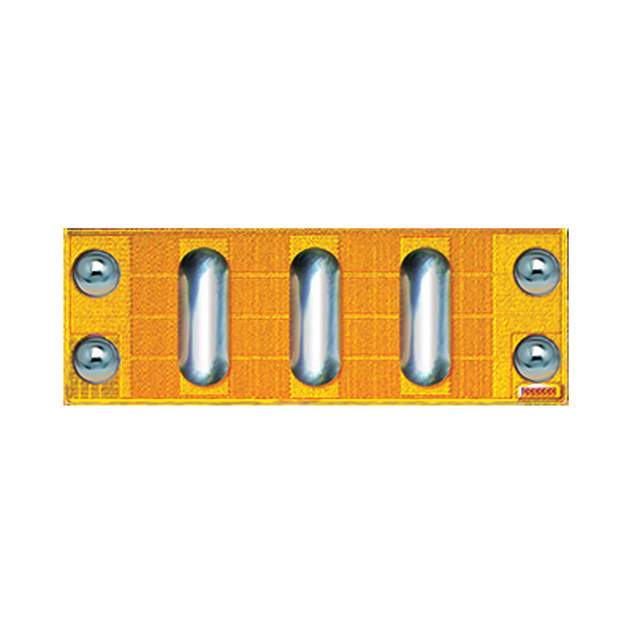

Same model may have multiple batches, images only for reference.

EPC2019

Name: EPC2019
Brand: EPC
SKU: 1005945
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EPC2019
Manufacturer	EPC
Catalog	Transistors - FETs, MOSFETs - RF
Description	GANFET N-CH 200V 8.5A DIE / N-Channel 200 V 8.5A (Ta) Surface Mount Die
Datasheet	EPC2019 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	EPC
Series	eGaN®
Package	Tape & Reel
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	8.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	42mOhm @ 7A, 5V
Vgs(th) (Max) @ Id	2.5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	2.9 nC @ 5 V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	288 pF @ 100 V
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	Die
Package / Case	Die
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0040
Other Names	917-1087-1,917-1087-2,917-1087-6
Standard Package	1,000
Win Source Part Number	1005945-EPC2019
Ultra Librarian 3D Model	Ultra Librarian EPC2019 CAD Model

Description

The EPC2019 is a GaNFET (Gallium Nitride) N-channel transistor from EPC.

Drain to Source Voltage (Vdss): 200V
Continuous Drain Current (Id): 8.5A (Ta) @ 25°C
Maximum Rds On: 42mOhm @ 7A, 5V
Maximum Vgs(th): 2.5V @ 1.5mA
Gate Charge (Qg) (Max): 2.9 nC @ 5V
Input Capacitance (Ciss) (Max): 288 pF @ 100Vds
Package: Die
Operating Temperature Range: -40°C to 150°C (TJ)
MSL Level: 1 (Unlimited)
HTSUS: 8541.29.0040
Also Known As: 917-1087-1, 917-1087-2, 917-1087-6
Maximum Drive Voltage: 5V
