Products specifications

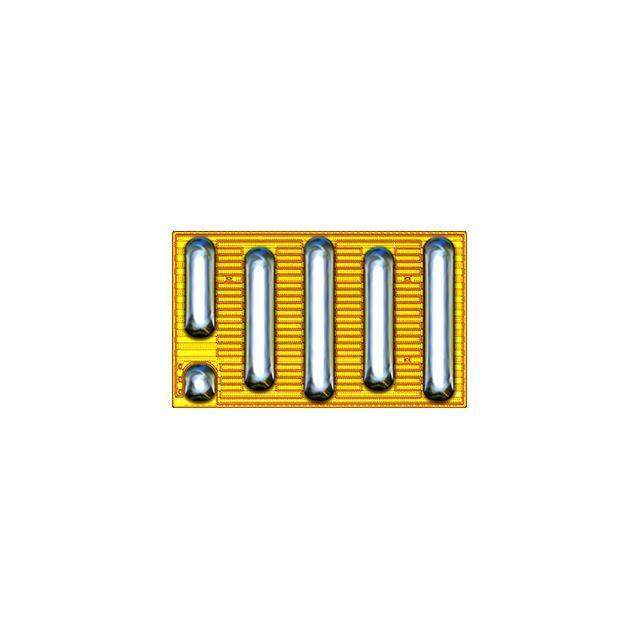

Win Source Part Number WS1202343-EPC2204
Manufacturer EPC
Category Discrete Semiconductor Products- Transistors- FETs, MOSFETs- Single FETs, MOSFETs
Series eGaN®
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) 100 V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian EPC2204 CAD Model

Description

EPC2204 from EPC is a single FET designed for engineers building high-efficiency power conversion and switching stages where fast performance, compact layouts, and advanced transistor technology may be important. In practical design work, devices in this category are often evaluated for DC-DC conversion, load switching, point-of-load regulation, motor control support circuits, and other high-speed power applications. EPC components are commonly considered when designers want to improve switching behavior and reduce system size, but exact electrical suitability should always be confirmed against the latest official datasheet. For sourcing teams and design engineers, EPC2204 is best positioned as a specialized power semiconductor option that should be reviewed for both technical fit and supply continuity before design-in. Lifecycle status for this part is currently information not available, so procurement planning should include stock verification and alternate-source strategy. RoHS compliance information is also not available here; engineers should verify compliance, exemptions, and material declarations directly with EPC or authorized distribution sources.
