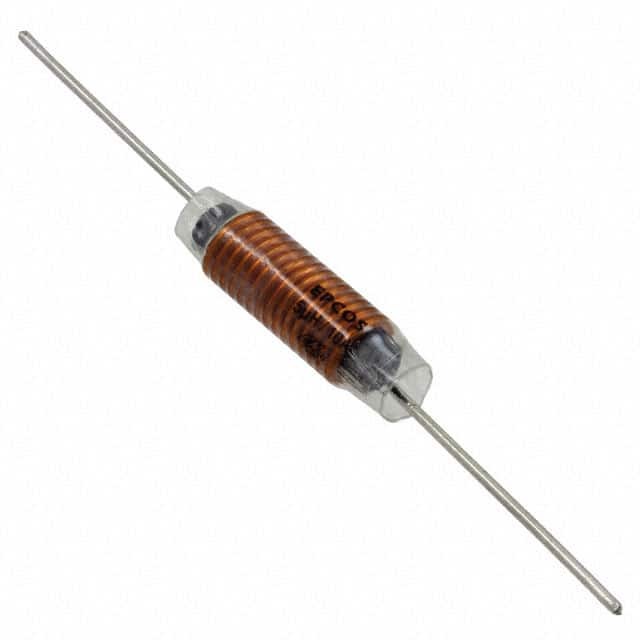

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr EPCOS (TDK)
Series B82111B
Package Bulk
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Shielding Unshielded
DC Resistance (DCR) 5mOhm
Frequency - Self Resonant 175MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.374" Dia x 1.339" L (9.50mm x 34.00mm)
Standard Package 150 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 846616-B82111B0000C021
Ultra Librarian 3D Model Ultra Librarian B82111B0000C021 CAD Model

Description

The 846616-B82111B0000C021 is a fixed inductor designed for various electronic applications. Bold the product name (e.g., BAV99S,135 → 846616-B82111B0000C021) and manufacturer (e.g., Nexperia USA Inc. → EPCOS (TDK)).

  • Series: B82111B
  • Core Type: Drum Core, Wirewound
  • Package: Bulk
  • Shielding: Unshielded
  • Size / Dimension: 0.374" Dia x 1.339" L (9.50mm x 34.00mm)
  • Inductance: 5 µH
  • Tolerance: ±20%
  • Frequency Self-Resonant: 175MHz
  • DC Resistance (DCR): 5mOhm
  • Mounting Type: Through Hole
  • Package / Case: Axial
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8504.50.8000
  • Status: Last Time Buy
