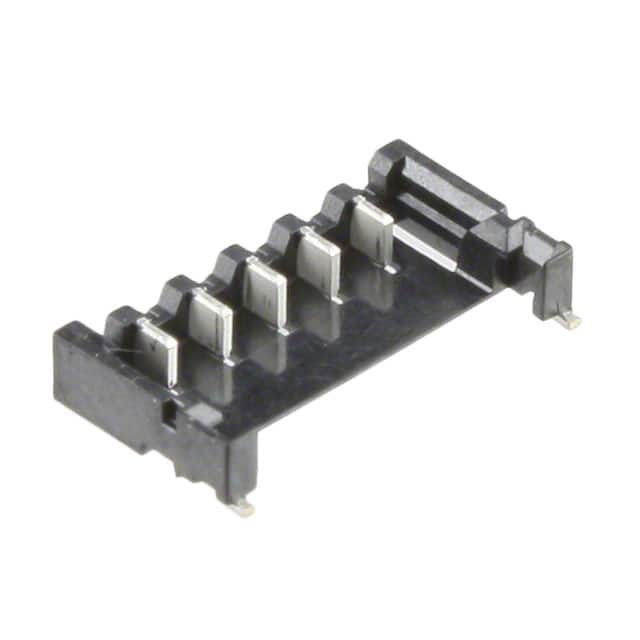

Same model may have multiple batches, images only for reference.

DF57-5P-1.2V(21)

Name: DF57-5P-1.2V(21)
Brand: Hirose Electric Co Ltd
SKU: 868596
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF57-5P-1.2V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 5POS 1.2MM / Connector Header Surface Mount 5 position 0.047" (1.20mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF57
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.047" (1.20mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Swing Lock
Insulation Height	0.055" (1.40mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Standard Package	5,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	868596-DF57-5P-1.2V(21)
Ultra Librarian 3D Model	Ultra Librarian DF57-5P-1.2V(21) CAD Model

Alternative Products

Description

The DF57 series is a range of rectangular headers with male pins designed for use in electronic components. This specific model, the 868596-DF57-5P-1.2V(21), features 5 positions and a pitch of 0.047" (1.20mm).

Positions: 5
Pitch: 0.047" (1.20mm)
Solder Retention: Yes
Fastening Type: Swing Lock
Package: Tape & Reel
Insulation Color: Black
Contact Material: Brass
Temperature Range: -35°C to 85°C
Series: DF57
Manufacturer: Hirose Electric Co Ltd
Product Status: Obsolete
