Same model may have multiple batches, images only for reference.

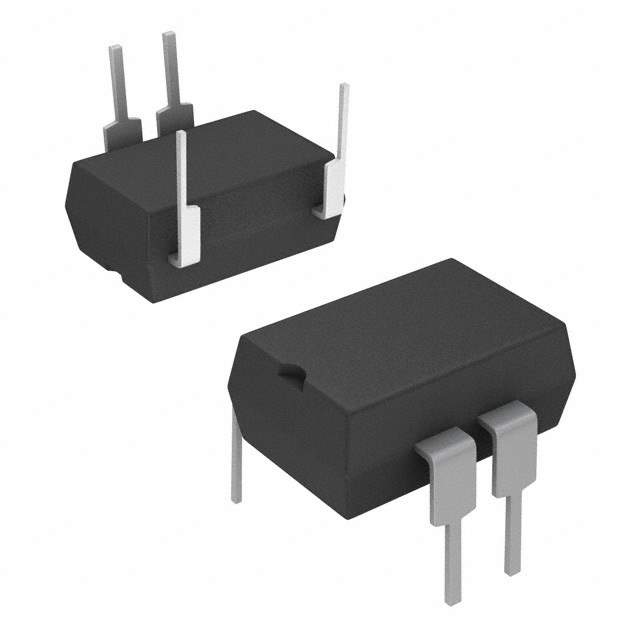

PVA3054NPBF Real Image
Same model may have multiple batches, images only for reference.

PVA3054NPBF

Part No PVA3054NPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOVO 300V 50MA 8-DIP
Datasheet
PVA3054NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 160 Ohm
Load Current 50mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 300 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 8-DIP Modified
Relay Type Relay
Win Source Part Number 1090755-PVA3054NPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVA3054NPBF CAD Model

Description

The relay is a SPST-NO (1 Form A) type relay with a load current of 50mA and a voltage input of 1.2VDC.

  • Manufacturer: Infineon Technologies
  • Relay Type: SPST-NO (1 Form A)
  • Load Current: 50mA
  • Voltage Input: 1.2VDC
  • Mounting: Through-Hole
  • Packaging: Tube/Rail
  • Voltage Load: 0 to 300V
  • Maximum On Resistance: 160 Ohm
  • Status: Active
  • Category: Relays
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Suitable for: Various applications requiring a SPST-NO relay with a load current of 50mA and a voltage input of 1.2VDC.
