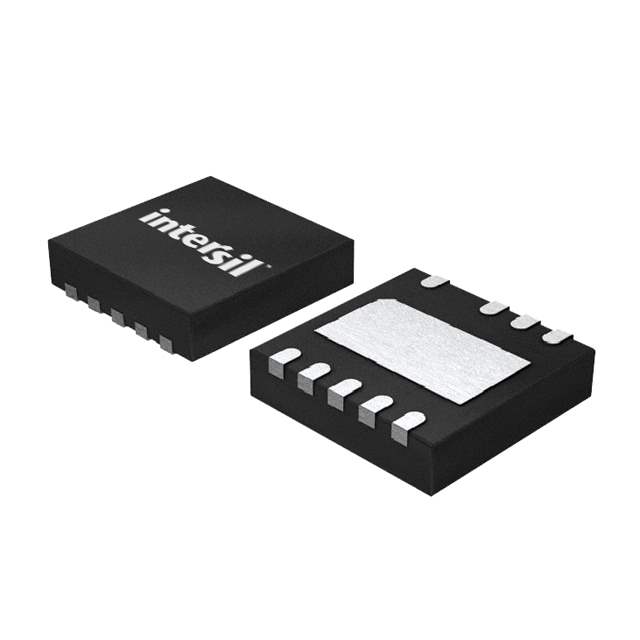

ISL2100AAR3Z Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 9 V to 14 V
Logic Voltage - VIL, VIH 3.7V, 7.4V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 114V
Rise and Fall Time 10ns, 10ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 9-DFN-EP (3x3)
Win Source Part Number 137761-ISL2100AAR3Z
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ISL2100AAR3Z CAD Model

Description

The Intersil 137761-ISL2100AAR3Z is an electronic component that is manufactured by Intersil.

  • Supply and Demand Status: Limited
  • Current Rating: 2A
  • High Side Voltage: 114V
