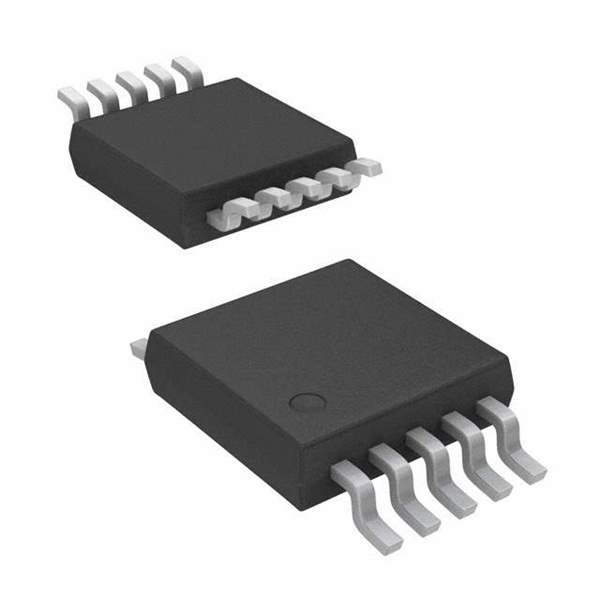

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 500 mOhm
Channel-to-Channel Matching (ΔRon) 60 mOhm
Single Supply Voltage (V+) 1.65 V to 4.5 V
Max Switch Time (Ton,Toff) 40ns, 20ns
Charge Injection 170pC
Channel Capacitance(CS off, CD off) 62pF
Max Leakage Current (IS off) 100nA
Crosstalk -85dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-MSOP
Win Source Part Number 104536-ISL8484IUZ-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL8484IUZ-T CAD Model

Description

The ISL8484IUZ-T is a 2-circuit SPDT switch circuit integrated circuit manufactured by Intersil.

  • Charge injection: 170pC
  • Crosstalk: -85dB @ 100kHz
  • Channel-to-channel matching (ΔRon): 60 mOhm
  • Package: 10-MSOP case
  • Single supply voltage (V+): 1.65 V to 4.5 V
  • Maximum switch time (Ton,Toff): 40ns, 20ns
  • Channel capacitance (CS off, CD off): 62pF
  • Supply and demand status: balanced
