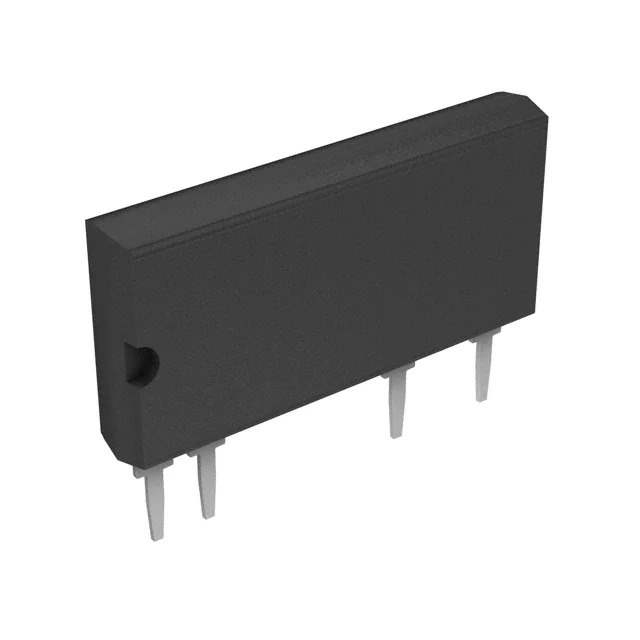

CPC1926Y Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 250 V
Load Current 700 mA
On-State Resistance (Max) 1.4 Ohms
Termination Style PC Pin
Package / Case 8-SIP, 4 Leads
Supplier Device Package 4-SIP
Base Product Number CPC1926
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
California Prop 65 Warning Information
Win Source Part Number 580144-CPC1926Y
Ultra Librarian 3D Model Ultra Librarian CPC1926Y CAD Model

Description

The CPC1926Y is a solid-state relay from IXYS.

  • Series: CPC and OptoMOS™
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Voltage Input: 1.2VDC
  • Output Type: AC/DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 1.4 Ohms
  • Load Current: 700mA
  • Load Voltage: 0V to 250V
  • Package: 8-SIP, 4 Leads
  • Product Status: Active
  • Applications: Industrial automation, telecommunications, and test and measurement equipment
