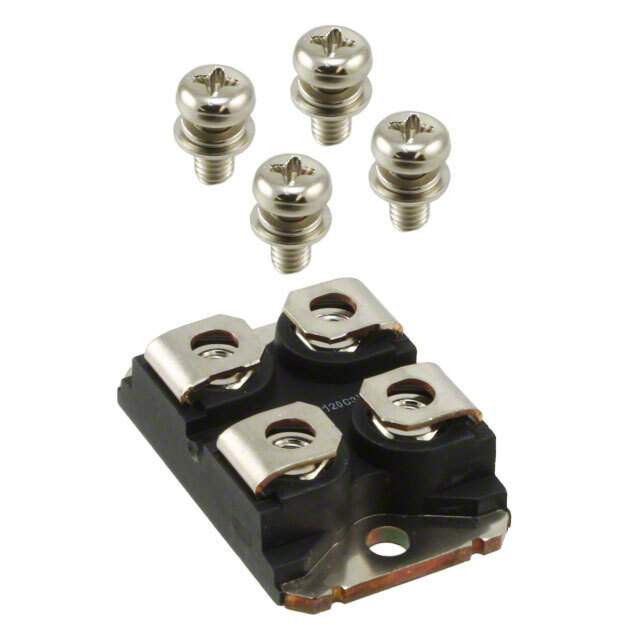

IXGN100N170 Real Image
Same model may have multiple batches, images only for reference.

IXGN100N170

Part No IXGN100N170
Manufacturer IXYS
Catalog IGBTs - Modules
Description IGBT 1700V 160A GENX3 SOT-227B / High Voltage IGBT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer IXYS
IGBT Type NPT
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 1700V
Current - Collector (Ic) (Maximum) 160A
Power - Max 735W
Vce(on) (Maximum) at Vge, Ic 3V at 15V, 100A
Current - Collector Cutoff (Maximum) 50μA
Input Capacitance (Cies) at Vce 9.22nF at 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812924-IXGN100N170
Ultra Librarian 3D Model Ultra Librarian IXGN100N170 CAD Model

Description

IXYS IXGN100N170, a single configuration chassis mount IGBT type NPT device from IXYS.

  • Power: 735W
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Temperature Range: -55°C to 150°C
  • Current Collector (Ic) Maximum: 160A
  • Voltage Collector Emitter Breakdown (Maximum): 1700V
  • Manufacturer Package: SOT-227-4, miniBLOC
  • Input Capacitance (Cies) @ Vce: 9.22nF @ 25V
