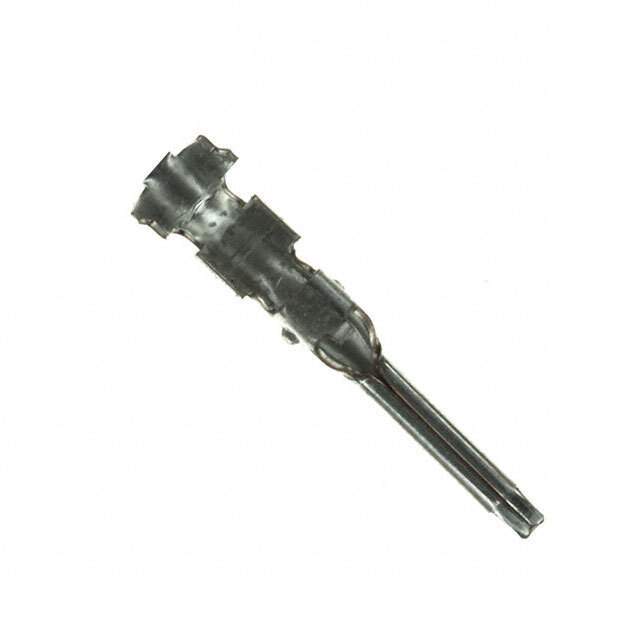

MX19P10K451 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr JAE Electronics
Series MX19
Package Tape & Reel (TR) Cut Tape (CT)
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 20-22 AWG
Contact Finish Tin
Base Product Number MX19P
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1351505-MX19P10K451
Ultra Librarian 3D Model Ultra Librarian MX19P10K451 CAD Model

Description

The MX19P10K451 is a rectangular connector contact from JAE Electronics.

  • Contact Material: Tin
  • Wire Gauge: 20-22 AWG
  • Contact Termination: Crimp
  • Contact Type: Pin
  • Packaging: Tape and Reel (TR) Cut Tape (CT)
  • Series: MX19
