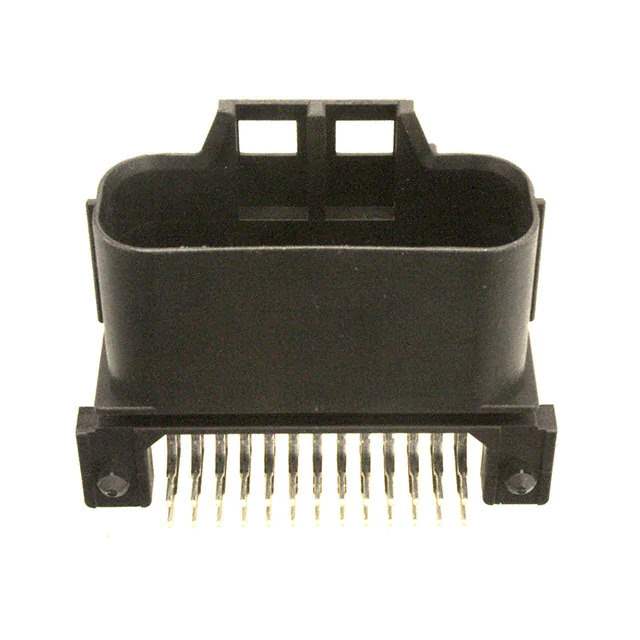

MX23A26NF1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX23A
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.173" (4.40mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.720" (18.30mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 125°C
Ingress Protection Waterproof
Insulation Color Black
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX23A26N
Standard Package 160 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 852433-MX23A26NF1
Ultra Librarian 3D Model Ultra Librarian MX23A26NF1 CAD Model

Description

The MX23A26NF1 is a 26-position male pin header connector from JAE Electronics.

  • Series: MX23A
  • Application: Automotive (Board to cable/wire)
  • Features: Board Guide and Latch Holder
  • Mounting Type: Through-Hole, Right Angle
  • Insulation Material: Polybutylene Terephthalate (PBT) with Glass-Filled
  • Contact Material: Brass
  • Contact Finish Mating: Tin
  • Contact Finish Post: Tin
  • Pitch: 0.098" (2.50mm)
  • Row Spacing: 0.173" (4.40mm)
  • Post Contact Length: 0.122" (3.10mm)
  • Insulation Height: 0.720" (18.30mm)
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 3A
  • Package: Bulk (160 pcs)
  • Waterproof: Yes
  • Flammability Rating: -
