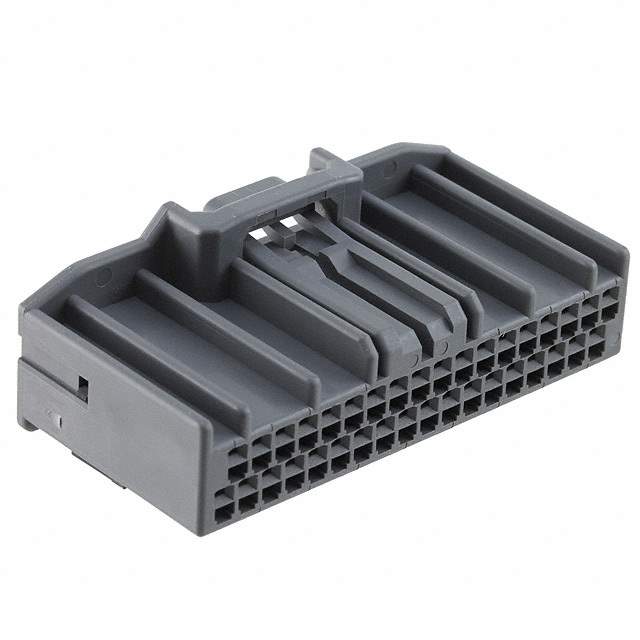

MX34036SF1 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series MX34
Package Tray
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 36
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Gray
Features -
Temperature Range - Operating -40°C ~ 85°C
Note Contacts Not Included
Base Product Number MX340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365901-MX34036SF1
Ultra Librarian 3D Model Ultra Librarian MX34036SF1 CAD Model

Description

The MX34036SF1 is a rectangular connector housing from JAE Electronics.

  • Connector Type: Receptacle
  • Number of Positions: 36
  • Number of Rows: 2
  • Housing Gender: Female Socket
  • Pitch: 0.087" (2.20mm)
  • Row Spacing: 0.118" (3.00mm)
  • Temperature Range: -40°C to 85°C
  • Series: MX34
  • California Prop 65: Compliant
  • Color: Gray
  • Mounting Type: Free-Hanging (In-Line)
  • Contacts Included: No
