Same model may have multiple batches, images only for reference.

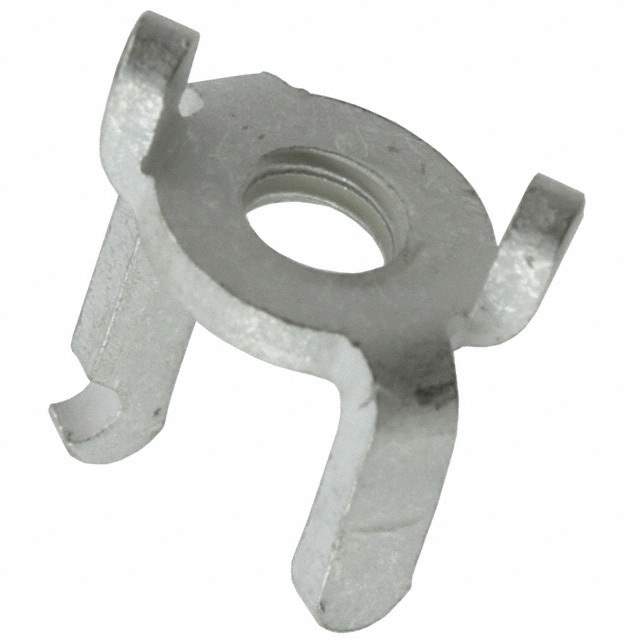

1206 Real Image
Same model may have multiple batches, images only for reference.

1206

Part No 1206
Manufacturer Keystone Electronics
Catalog Terminals
Description TERM SCREW 10-32 2 PIN PCB
Datasheet
1206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Screw Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Screw Terminal, Power Tap
Screw Size 10-32
Termination Solder
Current Rating (Amps) 30 A
Number of Pins 2
Mounting Type Through Hole
Features Anti-Rotational Tab, Notched Leg, Screw Not Included
Contact Finish Tin
Contact Material Brass
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7318.15.5030
Win Source Part Number 847525-1206
Ultra Librarian 3D Model Ultra Librarian 1206 CAD Model

Description

The 847525-1206 is a screw terminal power tap connector from Keystone Electronics.

  • Features: Anti-rotational tab and a notched leg design
  • Termination: Solder
  • Contact Finish: Tin
  • Material: Brass
  • Pins: 2
  • Screw Size: 10-32
  • Mounting: Through-Hole
  • Package: Bulk (100 pieces included)
  • Current Rating: 30A
