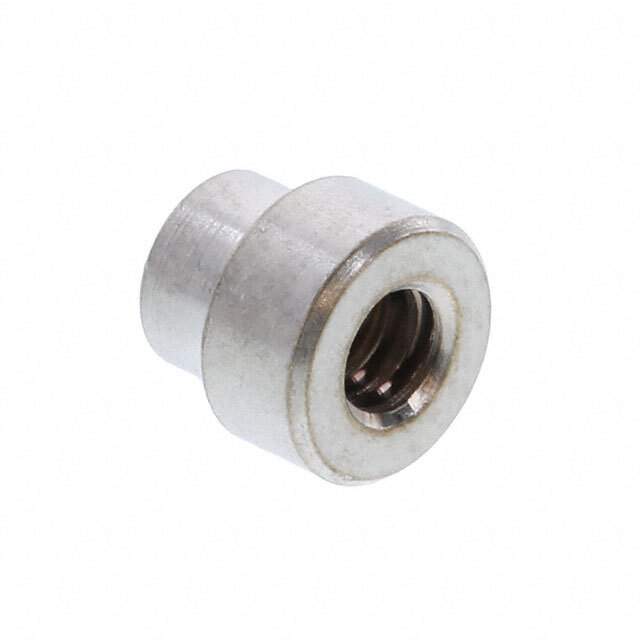

1560B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Board Spacers, Standoffs
Mfr Keystone Electronics
Package Bulk
Type Round Standoff
Threaded/Unthreaded Threaded
Gender Female, Swage
Screw, Thread Size #6-32
Diameter - Outside 0.250" (6.35mm) 1/4"
Between Board Height 0.125" (3.18mm) 1/8"
Length - Overall 0.234" (5.94mm)
Material Brass
Plating Nickel
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7419.80.5050
Other Names 1560BK,1560BK-ND,36-1560B,KEY1233-ND,1560BK-NDR,KEY1233
Standard Package 100
Win Source Part Number 1202623-1560B
Ultra Librarian 3D Model Ultra Librarian 1560B CAD Model

Description

The Keystone Electronics 1560B is a round female swage standoff that is part of the Hardware, Fasteners, Accessories>Board Spacers, Standoffs category.

  • Length: 0.234" (5.94mm)
  • Between Board Height: 0.125" (3.18mm) 1/8"
  • Diameter: 0.250" (6.35mm) 1/4"
  • Screw Thread Size: #6-32
  • Material: Brass
  • Plating: Nickel
  • Package: Bulk
  • Standard Package: 100
  • ECCN: EAR99
  • HTSUS: 7419.80.5050
