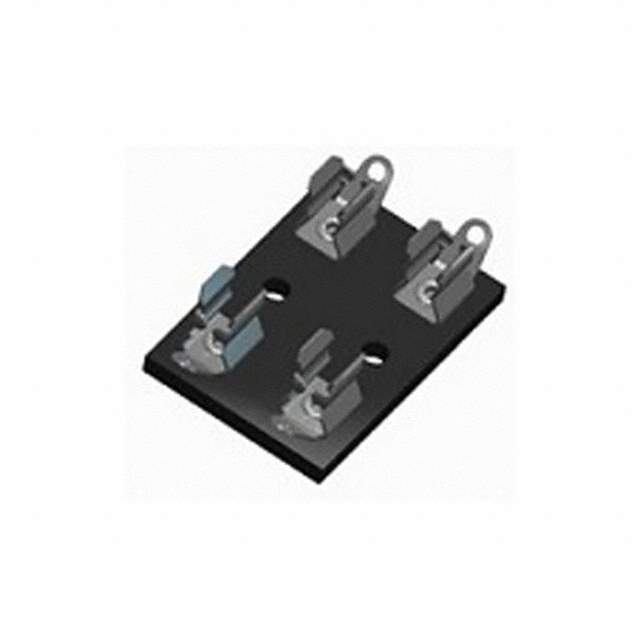

3541 Real Image
Same model may have multiple batches, images only for reference.

3541

Part No 3541
Manufacturer Keystone Electronics
Catalog Fuseholders
Description FUSE BLOCK CART 500V 15A CHASSIS
Datasheet
3541 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 15 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 2
Voltage 500V
Termination Style Solder Lug
Contact Material Brass
Contact Finish Nickel
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 855790-3541
Ultra Librarian 3D Model Ultra Librarian 3541 CAD Model

Description

The 855790-3541 is a fuseholder block designed for circuit protection.

  • Application: Circuit Protection
  • Termination Style: Solder Lug
  • Contact Finish: Nickel
  • Fuse Size: 3AG, 1/4" x 1-1/4" (SFE-20)
  • Number of Circuits: 2
  • Voltage Rating: 500V
  • Mounting Type: Chassis Mount
  • Package: Single Piece
  • Material: Brass
