Products specifications Report Issue?

Win Source Part Number WS1197013-5001
Manufacturer Keystone Electronics
Category Test and Measurement -Test Points
Series THM
Package Bulk
Product Status Active
Type PC Test Point, Miniature
Mounting Type Through Hole
Color Black
Hole Diameter 0.040" (1.02mm)
Size / Dimension 0.100" Dia x 0.180" L (2.54mm x 4.57mm)
Ultra Librarian 3D Model Ultra Librarian 5001 CAD Model

Description

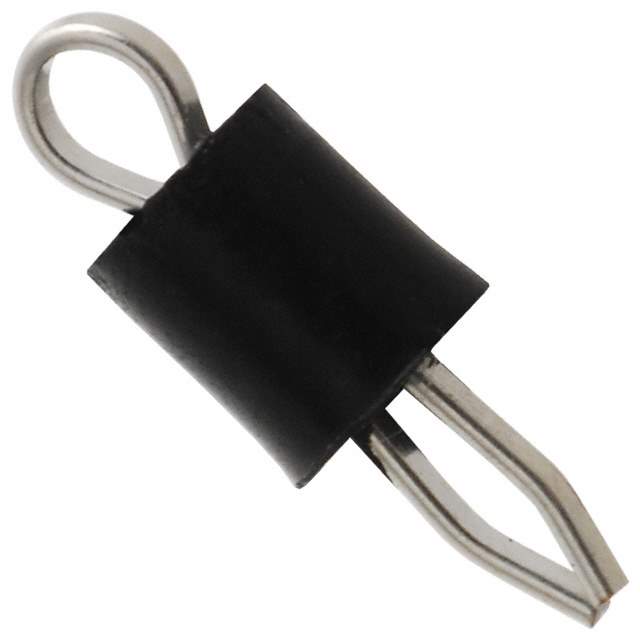

The Keystone Electronics THM PC Test Point is a miniature test point designed for through-hole mounting. It has a diameter of 0.100 inches and a length of 0.180 inches, making it compact and space-saving. The test point is black in color, providing easy visibility and identification. With a hole diameter of 0.040 inches, it allows for easy insertion of test probes or leads. The Keystone Electronics THM PC Test Point is an active product in the market, offering a reliable solution for test and measurement applications. Its small size and through-hole mounting make it suitable for various electronic devices and circuit boards. Whether used in prototyping, troubleshooting, or production testing, this test point provides a convenient and accessible connection for accurate measurements.
