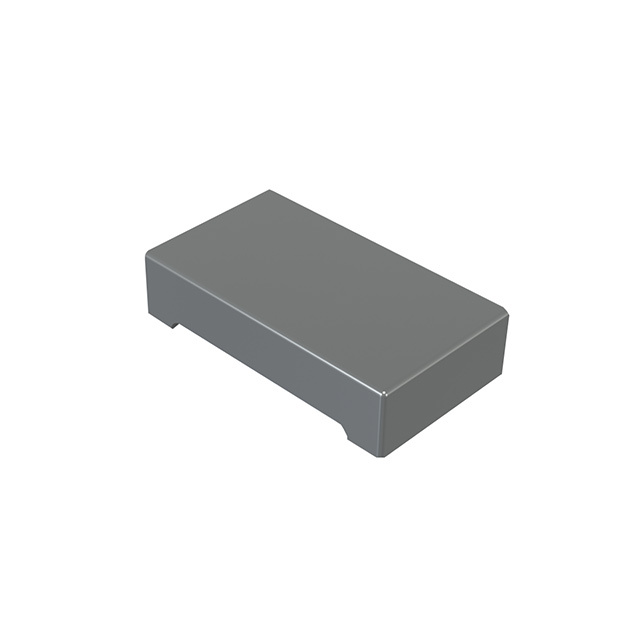

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category ResistorsChip Resistor - Surface Mount
Mfr Keystone Electronics
Part Status Active
Resistance 0 Ohms
Tolerance Jumper
Composition Metal Element
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.120" L x 0.067" W (3.05mm x 1.70mm)
Height - Seated (Max) 0.028" (0.71mm)
Number of Terminations 2
Ultra Librarian 3D Model Ultra Librarian 5108 CAD Model
