Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Status Obsolete
Reference Type Series, Buried Zener
Output Type Fixed
Min/Fixed Output Voltage 6.9V
Output Current 15mA
Tolerance ±0.29%
Temperature Coefficient 10ppm/°C
Noise - 10Hz to 10kHz 7μVrms
Current - Cathode 600μA
Temperature Range - Operating 0°C ~ 70°C
Mounting Style Through Hole

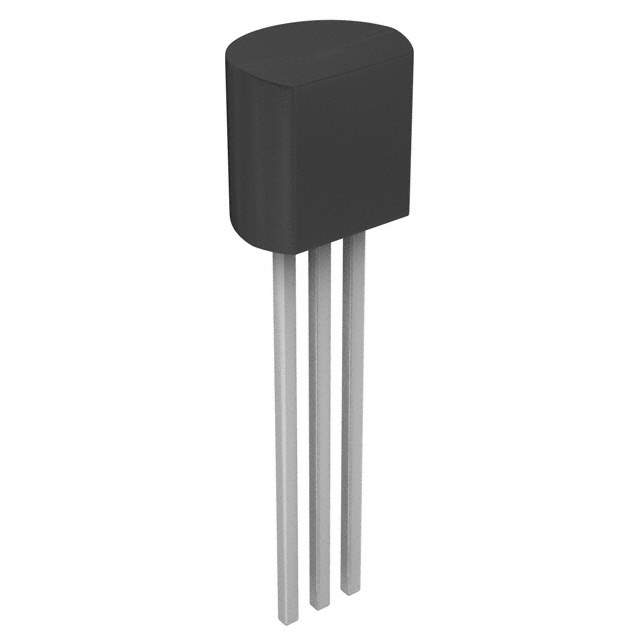

Manufacturer Package TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92-3
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1198651-LM329AZ
Manufacturer Homepage www.linear.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM329AZ CAD Model

Description

The LM329AZ from Linear Technology is a precision voltage reference that provides a stable 6.9V output with a high level of accuracy and temperature stability. This component is widely used in applications that require a precise voltage reference, such as high-end instrumentation, A/D and D/D converters, and precision power supplies.

Key Features

  • Output Voltage: The LM329AZ offers a fixed output voltage of 6.9V, making it suitable for a variety of precision applications.
  • Temperature Stability: With an impressive temperature coefficient, this voltage reference maintains its accuracy across a wide range of operating temperatures.
  • Low Dynamic Impedance: The dynamic impedance of the LM329AZ is low, ensuring minimal voltage drop under load and contributing to its stable performance.
  • Wide Operating Current: It operates over a broad current range, allowing for flexibility in different circuit designs.
  • Long-Term Stability: Designed for reliability over time, the LM329AZ exhibits excellent long-term stability, making it a trusted component for long-duration projects.
  • Hermetically Sealed: The device is available in a hermetically sealed package, offering protection against environmental factors and enhancing its durability.

Applications

  • Precision analog-to-digital converters
  • Digital-to-analog converters
  • High-precision instrumentation
  • Portable test equipment
  • Power supply control
  • Battery-operated equipment

The LM329AZ is recognized for its high precision and robust performance. It is an ideal choice for engineers and designers looking to incorporate a reliable voltage reference into their electronic designs. Its combination of stability, accuracy, and reliability makes it a valuable component in ensuring the performance of critical electronic systems.
