Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Packaging Bulk
Status Obsolete
Amplifier Type General Purpose
Slew Rate 0.25V/μs
Gain Bandwidth Product 800kHz
Current - Input Bias 500pA
Voltage - Input Offset 10μV
Supply Voltage , Single/Dual (±) ±3V ~ 18V
Temperature Range - Operating 0°C ~ 125°C
Mounting Style Through Hole

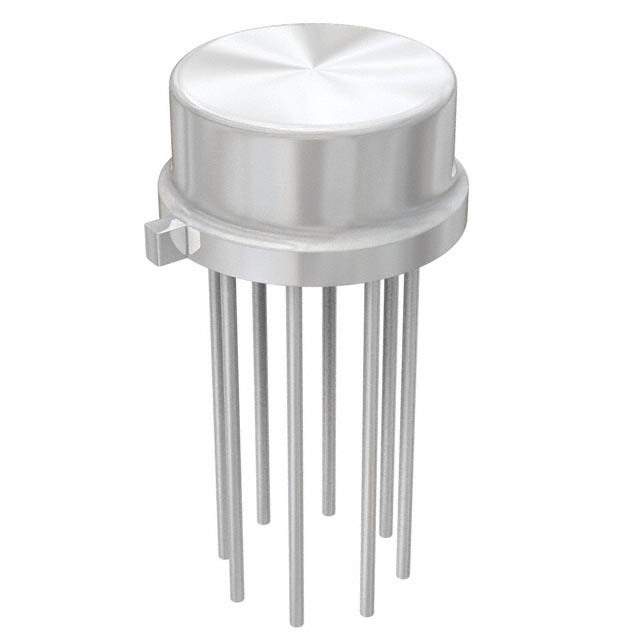

Manufacturer Package TO-205-8, TO-5-8 Metal Can
Supplier Device Package TO-5-8
Family Part Number LT1001
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1204633-LT1001ACH
Manufacturer Homepage www.linear.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LT1001ACH CAD Model

Description

The LT1001ACH is a high-performance operational amplifier (op-amp) from Linear Technology, designed to offer a perfect blend of precision, low power consumption, and high versatility. This product is ideal for a broad range of applications, including industrial control systems, test equipment, and analog circuits where accuracy is paramount.

Key Features:

  • Low Offset Voltage: The LT1001ACH boasts an impressive low input offset voltage, which significantly reduces the need for external calibration and ensures high accuracy in signal amplification.
  • High Gain Bandwidth Product: With a high gain bandwidth product, this op-amp can handle a wide range of frequencies, making it suitable for audio processing, filters, and fast signal conditioning tasks.
  • Stable with High Capacitive Loads: This operational amplifier is designed to be stable even when driving high capacitive loads, a crucial feature for maintaining signal fidelity in complex circuits.
  • Low Noise: The LT1001ACH has a low noise figure, which minimizes the introduction of unwanted signals into the amplification process, thus preserving the integrity of the original signal.
  • Low Power Consumption: Energy efficiency is a key consideration in modern electronic design, and the LT1001ACH addresses this by operating with low quiescent current, making it suitable for battery-powered and portable applications.

Product Specifications:

Parameter Value Input Offset Voltage Max 75 µV Gain Bandwidth Product 1 MHz Supply Current Max 1.4 mA Operating Temperature Range -55°C to +125°C Package TO-5-8

The LT1001ACH from Linear Technology is a testament to the company's commitment to providing high-quality, reliable, and precision components. Whether you're designing for professional-grade equipment or sophisticated hobbyist projects, the LT1001ACH is a solid choice for a precision operational amplifier.
